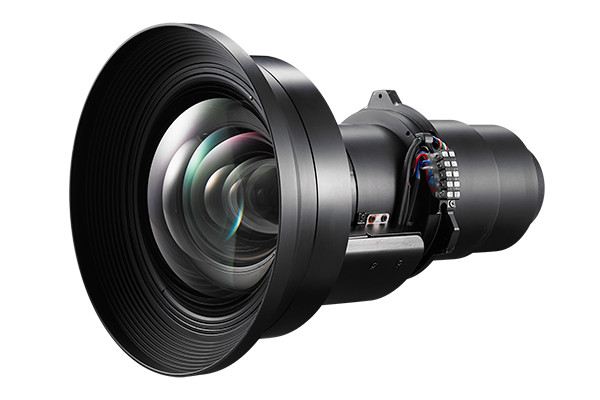

Optoma BX-CTA25

Ultra Wide Zoom Lens, D:W 0.85-1.02:1
Item #0601-3751 Model #BXCTA25

Specifications

BX-CTA25

Motorized Short Throw Ultra-Wide Zoom Lens

Please check the Compatibility tab to make sure that this lens is compatible with your projector.



TECHNICAL SPECIFICATIONS
Throw Ratio
(distance/width)		 0.85 – 1.02:1 (4K – 0.66" UHD chip)
Zoom Adjustment 1.2x Motorized
Focal Length (mm) 12.83 ~ 15.36
Aperture (f/stop) 2.5
PHYSICAL SPECIFICATIONS
Dimensions 6.10" x 6.10” x 8.42”
Weight 4.6 lbs
OTHER
Warranty 3 years, or the same warranty period as the original projector, whichever is sooner, for removable, interchangeable Projector lenses.
UPC 796435071356

Same Series Lenses

Model BX-CTA25 BX-CTA26 BX-CTA20 BX-CTA21
Std Lens		 BX-CTA22 BX-CTA23
Price


Add to Cart
Add to Cart
Add to Cart
Add to Cart
  BX-CTA25 BX-CTA26 BX-CTA20 BX-CTA21 BX-CTA22 BX-CTA23
D:W WUXGA N/A N/A 1.2 – 1.5 1.5 – 2.0 2.0 – 4.0 4.0 – 7.2:1
D:W 4K 0.85 – 1.02 1.2 – 1.73 1.70 – 2.12 2.12 – 2.83 2.83 – 5.66 5.66 – 10.18
f/stop 2.5 2.0 2.2 2.0 2.2 2.2
