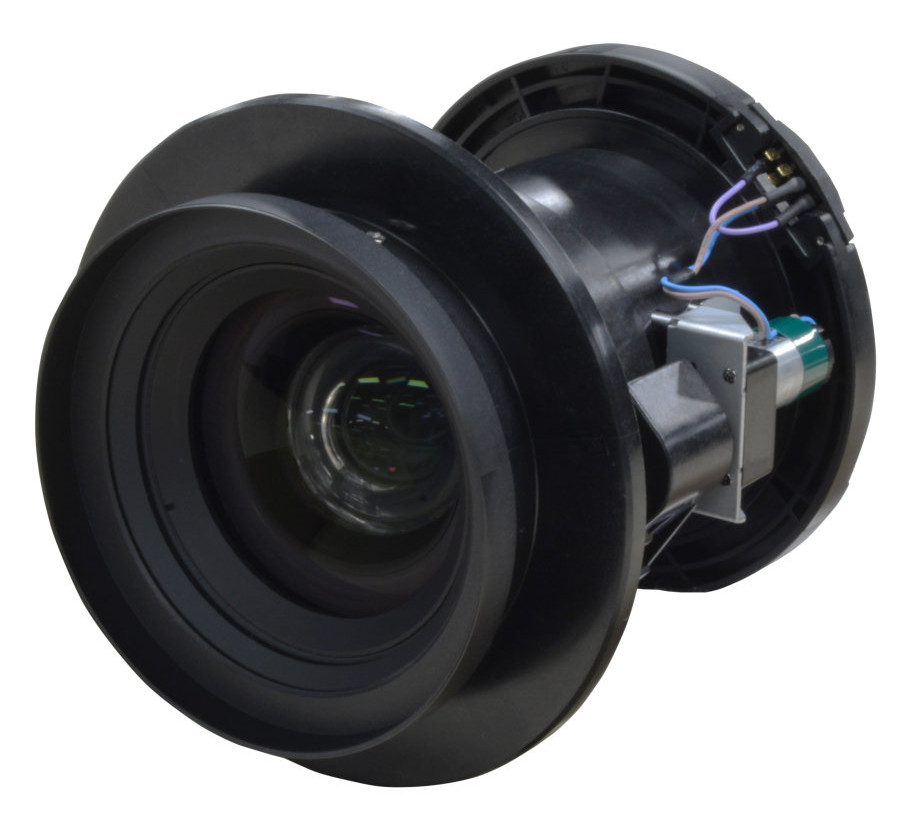

Eiki AH-E22010

Short Throw Fixed On-Axis Lens, 0.80:1
Part #: 0601-5781    Mfr #: AHE22010

Eiki AH-E22010

Specifications

Eiki AH-E22010

Short Throw Fixed On-Axis Lens



Specifications:
  • Motorized Focus
  • Focal length: 0.48" (13.05 mm)
  • F/stop: 1.8 On-Axis only
  • Throw ratio: 0.80:1 (WUXGA and WXGA)
                       0.82:1 (XGA)

This lens is optimal for rear projection applications.

Please check the Compatibility tab to make sure that this lens is compatible with your projector.

Same Series Lenses

Model: AH-E22010 AH-E22020

AH-E21010
Std Lens

AH-E23010 AH-E23020

Add to Cart

Add to Cart
$409.00
Add to Cart

Add to Cart

Add to Cart
  AH-22010 AH-E22020 AH-E21010 AH-E23010 AH-E23020
D:W WUXGA 0.80:1 1.17 – 1.54:1 1.44 – 2.67:1 2.62 – 4.45:1 4.31 – 7.35:1
D:W WXGA 0.80:1 1.17 – 1.54:1 1.44 – 2.67:1 2.62 – 4.45:1 4.31 – 7.35:1
D:W XGA 0.82:1 1.19  1.57:1 1.47 – 2.72:1 2.67 – 4.54:1 4.40 – 7.50:1
F/stop: 1.8 2.0 – 2.6 1.8 – 2.6 2.2 – 2.8 2.2 – 2.8
