The PDS series is designed to meet today’s requirements for a high-quality, easy-to-use and fast seamless switcher with more digital inputs at an affordable price. It is the perfect fit for mid-sized live events, breakout sessions, seminar rooms and boardrooms.

4K for you

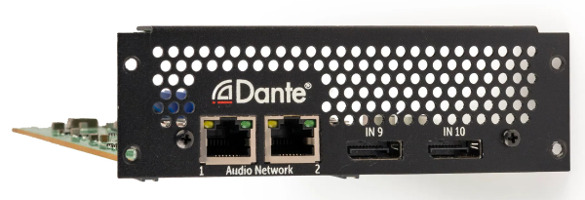

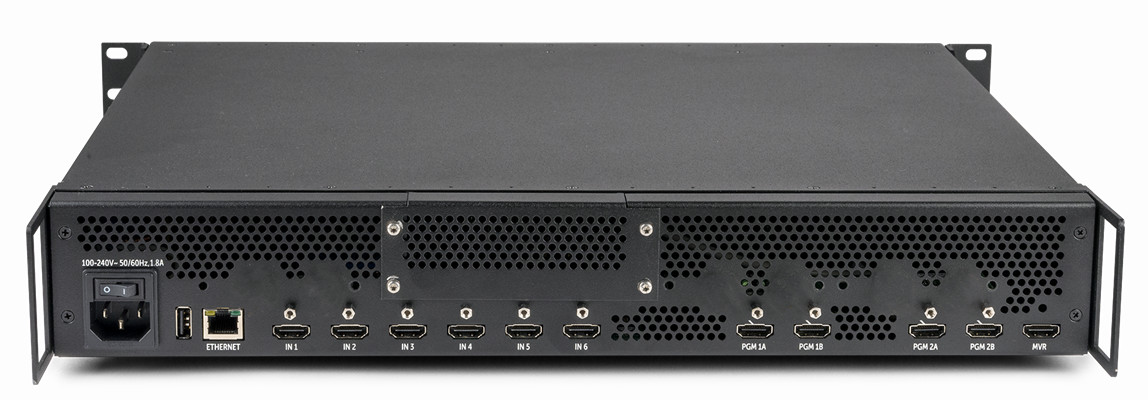

This PDS-4K enables single screen, dual screen and quad screen switching with high-quality 4K processing, and also supports Dante^® audio and DisplayPort 1.2 with the provided interface card. It includes six HDMI 2.0 inputs and four fully seamless mixing program outputs at up to 4K resolution.

Benefit from the ultra-low latency processing (≤ 2 frames delay @60Hz), smooth video display and seamless transitions between inputs to maximize audience engagement. Additionally, you can increase interactivity by showing up to two live inputs simultaneously with the available PiP layers. And the Event Master Athena^TM scaling technology guarantees superior signal clarity and minimum scaling artifacts.

PDS: pretty darn simple

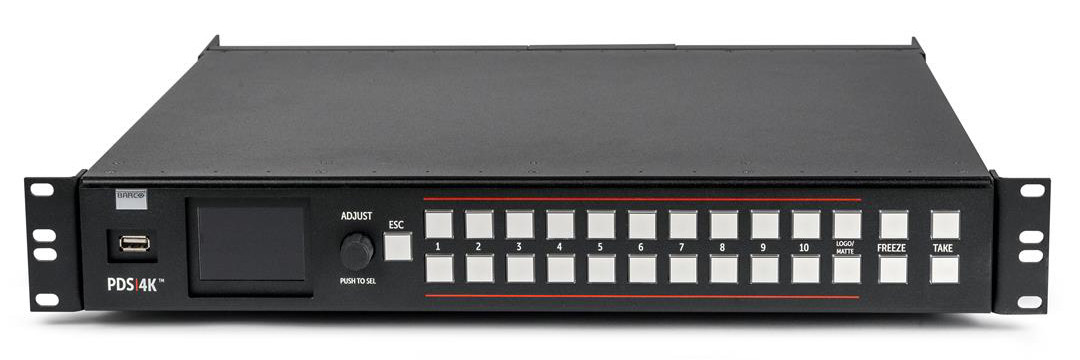

The PDS-4K switcher guarantees unsurpassed performances and outstanding visual experience while also being exceptionally easy to operate. With just one simple press on the buttons of the intuitive front panel interface, you can switch easily between the input sources and preconfigured layouts.

What’s more, the PDS-4K is compatible with all the familiar Barco visualization solutions and presentation devices (e.g. ClickShare) without compromising on video quality. The PDS-4K can be controlled with Event Master Toolset, and thanks to the API, it can also be combined with other third-party control panels.

The PDS-4K is built for applications requiring the highest availability and uptime. The switcher also proves to be a smart investment well into the future with option cards to ensure expandability and future-proof upgradability.

(Model Number: R9009652)
