Roland V-8HD

8-Input HDMI Video Switcher/Mixer
Item #0615-0142 Model #V8HD

Overview

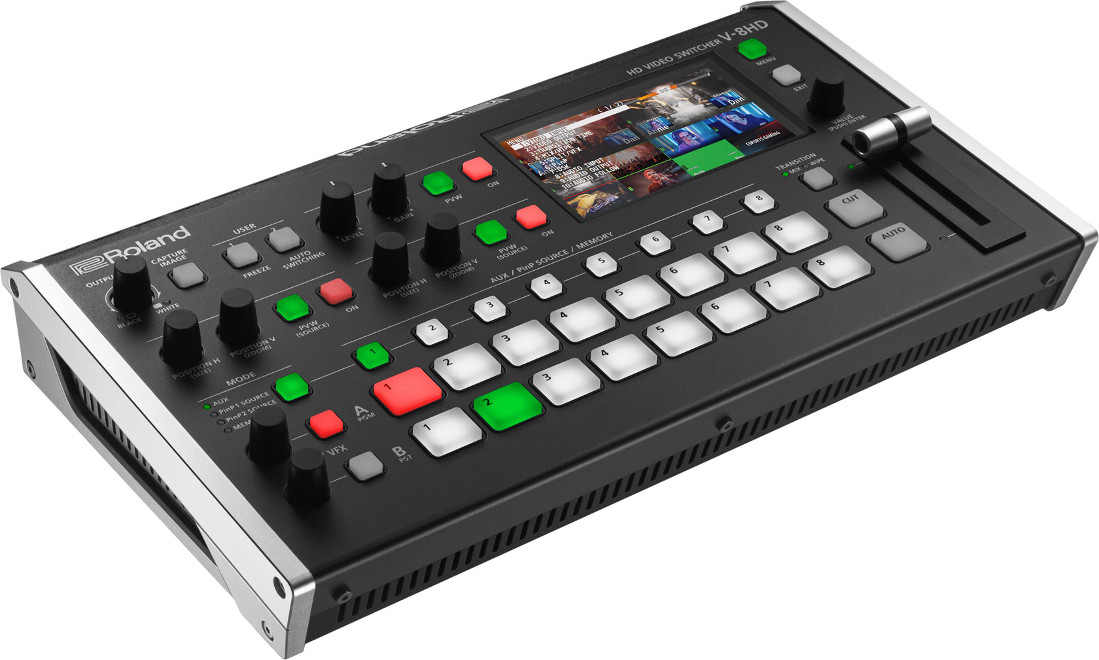

Roland V-8HD

8-Input HDMI Video Switcher/Mixer

Versatile, portable, and reliable, the Roland V-8HD brings a world of creative options to live event switching. Its all-in-one hardware design eliminates computer setup hassles and software-based crashes, while the HDMI workflow and loaded professional toolset streamline production and reduce stress on the gig.

Creative professionals need more video inputs for layered graphics and visual effects, and business professionals often need multiple backup video sources. Having the ability to meet all these needs brings satisfied clients and greater audience engagement. With the V-8HD’s generous number of HDMI inputs and outputs, you’re able to offer clients a vast amount of creative freedom—without increasing the budget.

  • All HDMI workflow
  • Five-layer effects and keying engine
  • Built-in multi-viewer preview monitor
  • Aux output for a different video feed
  • Technology-assisted automatic video switching
  • 8 channel video/18-channel digital audio mixer with effects
  • Start & Stop Atomos recorders
  • Free iPad remote control app available
  • Ultra-mobile, lightweight, and efficient
  • Aids in reducing capital expenditure

Features

  • Maximum Connectivity: seamlessly mixes eight HDMI sources with Full HD support, even when the sources have mismatched frame rates and color spaces. Built-in scalers on two of the HDMI inputs let you easily interface with client-provided sources like computers, tablets, smartphones, gaming consoles, and legacy 4:3 devices.
  • Five Composition Layers, Effects, and Keys: let you prepare the content according to client specifications and separate it into layers for added polish and excitement:

Layer 1 and 2: Start with one mixable live background video layer.
Layer 3 and 4: Place in two picture-in-picture layers or chroma/luminance key effects.
Layer 5: Add one downstream keyer layer.

  • Ultra-Mobile, Lightweight, and Efficient: fits effortlessly into any live production environment, even with minimal setup space. At 4 lbs/2 kg, it's easy to carry in a backpack or luggage. With its smart feature set, eight HDMI inputs, built-in 18-channel audio mixer, and support for external battery power, the streamlined V-8HD is the most versatile and efficient HDMI switcher available.
  • Seamless Memory Recall: stores and recalls unique looks with only a few button presses. The eight preset memories and powerful composition effects engine work together to provide a completely seamless load between the different looks.
  • Separate Feeds for Separate Needs: Presenter confidence monitors, live streams, and recording feeds often require different visual content from the main program output. Assignment buttons send any of your connected input devices to a dedicated aux output without affecting the main feed. It’s also possible to synchronize the aux output with the program output, giving you a built-in 2x distribution amp.

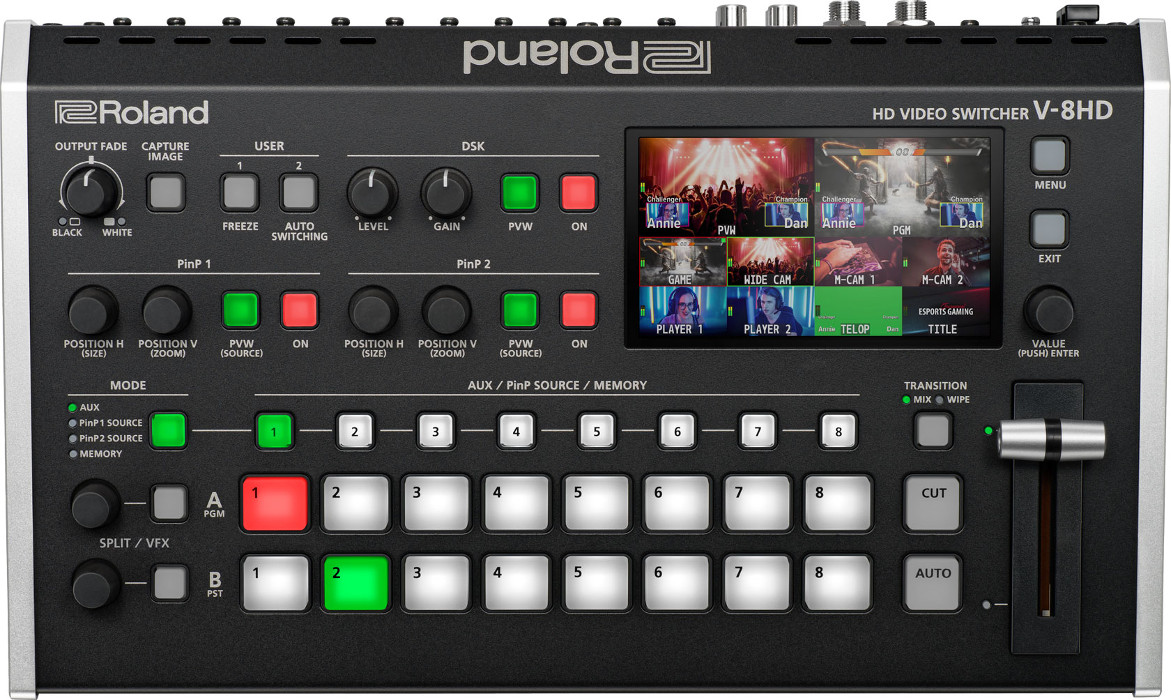

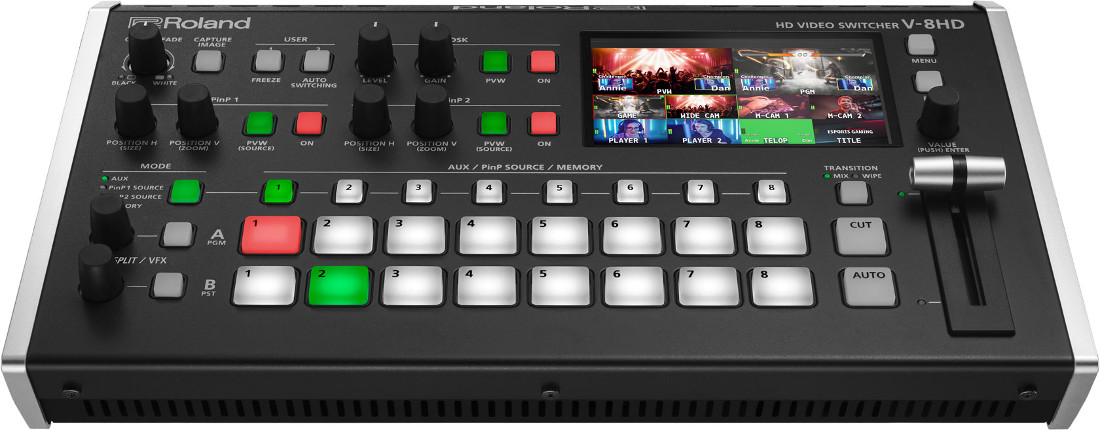

  • Built-In Bright 4.3-inch Multi-Viewer Display: lets you monitor all eight video inputs, PGM, and PVW plus menu overlay from a single screen. Input windows show camcorder recording status and embedded audio levels. Connect a larger external TV for an immense multi-viewer experience, or to make menu changes without moving the focus from the action.
  • Crystal-Clear Audio and Effects: allows pros and beginners alike to quickly create great-sounding and engaging mixes. The studio-grade, 18-channel audio mixer blends signals from the eight HDMI inputs and stereo RCA inputs, while a feature-packed preset effects library provides setups for everyday production environments like meetings and interviews, plus challenging situations that require wind noise reduction and microphone de-essing.
  • Automated Video Switching: provides three technology assisted automatic switching modes. Input Scan switches input sources randomly or in sequence, while Preset Memory Scan switches between preset memories. Beats Per Minute (BPM) Sync is also available, automatically switching Preview and Program at a specified tempo.
  • Record Triggering and Confirmation: via HDMI, the V-8HD operator can trigger Atomos recorders to start and stop recording. Some camcorders even display a recording confirmation icon on the input channel of the V-8HD's multi-viewer screen, letting you keep an eye on the recording status while staying focused on other critical tasks.
  • Dedicated V-8HD iPad Remote Control App: turns an iPad into an efficient touch interface for the V-8HD.It  runs essential switching functions, mixes audio with virtual faders, changes settings and effect parameters quickly, and creates up to eight custom scenes for fast, efficient setup changes.
  • Hands-Free Switching & Control: Stomp on a BOSS single or double foot switch to execute over 100 different switcher commands. Cut to a still image, transition PIP on/off the screen, or drop in a keyed lower third title. It’s also possible to switch the aux output between presenter notes and stage manager messages, turn automatic switching mode on/off, and much more.

Specifications

VIDEO
Video Processing 4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors INPUT 1--6: HDMI type A x 6
* HDCP Supported

INPUT 7--8: HDMI type A x 2
* HDCP Supported
* Multi-format Supported
Output Connectors OUTPUT 1--3: HDMI type A x 3
* HDCP Supported
Supported Video Input Formats INPUT 1-6
720/59.94p, 720/60p *1, *3
720/50p *1, *4
1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3
1080/50i, 1080/50p, 1080/25p *2, *4
1080/23.98p, 1080/24p *2
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i or 1080p
*3 FRAME RATE = 59.94 Hz or 60 Hz
*4 FRAME RATE = 50 Hz

INPUT 7-8
480/59.94i, 480/59.94p, 720/59.94p, 720/60p, 1080/59.94i, 1080/60i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
VGA (640×480/60Hz), SVGA (800×600/60Hz), XGA (1024×768/60Hz)
WXGA (1280×800/60Hz), SXGA (1280×1024/60Hz)
FWXGA (1366×768/60Hz), SXGA+ (1400×1050/60Hz)
UXGA (1600×1200/60Hz), WUXGA (1920×1200/60Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
*1 FRAME RATE = 59.94 Hz or 60 Hz
*2 FRAME RATE = 50 Hz
Still Image Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color
* It can be stored up to 8 files in the internal memory.
* PNG alpha channel not supported.
Supported Video Output Formats OUTPUT 1-2:
720/59.94p *1, *4
720/60p *1, *5
720/50p *1, *6
1080/59.94i *2, *4
1080/60i *2, *5
1080/50i *2, *6
1080/59.94p *3, *4
1080/60p *3, *5
1080/50p *3, *6
*1 SYSTEM FORMAT = 720p
*2 SYSTEM FORMAT = 1080i
*3 SYSTEM FORMAT = 1080p
*4 FRAME RATE = 59.94 Hz
*5 FRAME RATE = 60 Hz
*6 FRAME RATE = 50 Hz

OUTPUT 3:
1080/59.94p *1
1080/60p *2
1080/50p *3
*1 FRAME RATE = 59.94 Hz
*2 FRAME RATE = 60 Hz
*3 FRAME RATE = 50 Hz
Video Effects Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (8 types)
Composition: PinP x 2 (SQUARE, CIRCLE, DIAMOND), SPLIT (2 types), Keyer x 2 (Luminance Key, Chroma Key), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
Audio Processing Sampling rate: 24 bits/48 kHz
Audio Formats Linear PCM, 24 bits/48 kHz, 2 ch
Audio Effects Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output

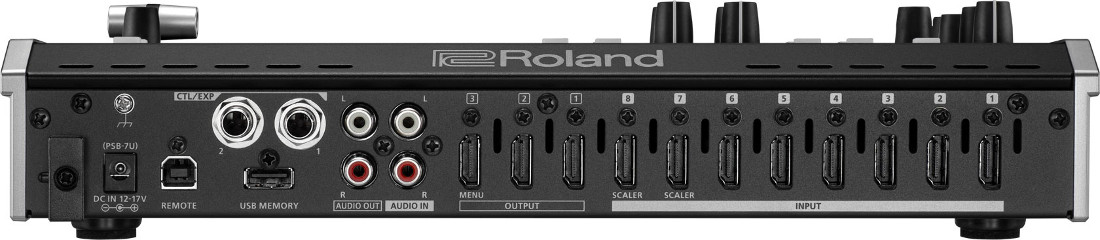

CONNECTORS
Input Connectors INPUT 1--8: HDMI Type A x 8

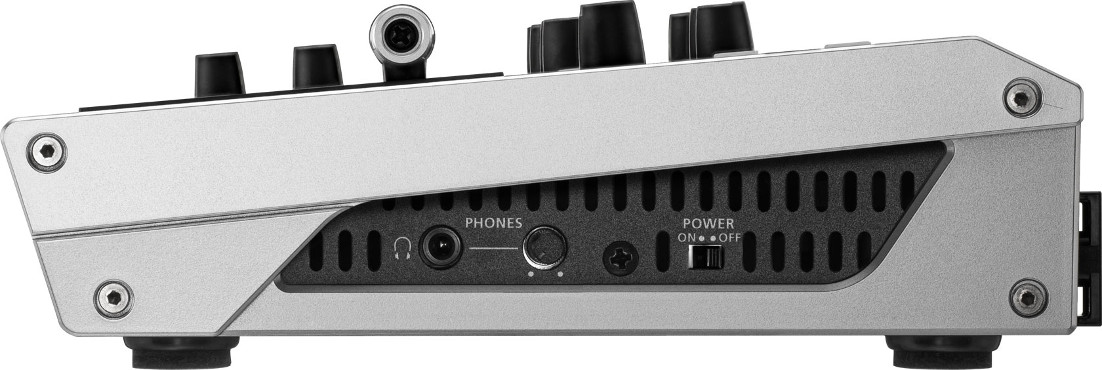

AUDIO IN: RCA phono type
Output Connectors OUTPUT 1--3: HDMI Type A x 3
AUDIO OUT: RCA phono type
PHONES: Stereo miniature type
Other Connectors USB MEMORY: USB A type (for USB flash drive)
REMOTE:USB B Type (for remote control from iPad)
CTL/EXP:1/4-inch TRS phone type
Other Functions Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Switching
Auto Input Detect
AUDIO INPUT/OUTPUT CHARACTERISTICS
Input Level AUDIO IN: -10 dBu (Maximum: +8 dBu)
Input Impedance AUDIO IN: 38 k ohms
Output Level AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance AUDIO OUT: 1 k ohm
PHONES: 10 ohms
OTHERS
Display 4.3 inches TFT Color LCD: 480 x 272 dots
Power Supply AC Adaptor
Current Draw 3.3 A
Power Consumption 39.6 W
Dimensions 317 (W) x 193 (D) x 70 (H) mm
12-1/2 (W) x 7-5/8 (D) x 2-13/16 (H) inches
Weight (excluding AC adaptor) 2.0 kg
4 lbs 7 oz
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Accessories Owner's Manual
AC adaptor
Power cord

* 0 dBu = 0.775 Vrms
