Epson L630U

Laser LCD Projector, WUXGA, 6200 Lumens, 1.35-2.20, Lens Shift, 3-Year Warranty
Part #: 0600-4281    Mfr #: V11HA26020

Epson L630U

Overview

Epson PowerLite L630U

Full HD WUXGA Long-throw Laser Projector

The ultra bright Full HD WUXGA projector for classrooms, meetings and more

Share bright, easy-to-read displays for meetings, lectures and more with the PowerLite L630U long-throw laser projector. Offering an incredible 6,200 lumens of brightness, the PowerLite L630U enhances spaces with vibrant, true-to-life, Full HD WUXGA images.

Ideal for business, education and beyond, this versatile projector displays up to 500" and provides an array of features for engaging, impactful experiences, including integrated wireless networking and Miracast® for easy sharing from laptops and smart devices.

A convenient, easy-to-use solution, the PowerLite L630U features a virtually maintenance-free 20,000-hour laser light source, plus a variety of built-in tools, lens shift and advanced software for easy, streamlined installation.

Key Features:

  • Up to 6,200 lumens of equal Color and White Brightness
  • Full HD WUXGA support; accepts 4K signal
  • Virtually maintenance-free 20,000-hour laser light source
  • Display from 50" to 500" diagonal (16:10) or ultra wide (16:6)
  • Built-in tools for simplified installation

(Model: V11HA26020)

Features

  • 3-chip 3LCD image quality: With up to 6,200 lumens of equal Color and White Brightness1 for vibrant, rich color
  • Full HD WUXGA support: Native WUXGA 1920 x 1200 resolution for true-to-life images; accepts 4K signal
  • Breakthrough laser technology: Features a virtually maintenance-free 20,000-hour laser light source3
  • Flexible projection: Lightweight, easy-to-install design; can display images from 50" to 500" diagonal in 16:10 or ultra wide 16:6 to cover a large wall with bold, beautiful images
  • Convenient placement: Easy installation and flexible placement with horizontal and vertical lens shift
  • Integrated wireless networking with enterprise-level security: can connect with Miracast, which supports software-free, peer-to-peer wireless connectivity2; screen sharing for remote collaboration
  • Simplified installation: 360-degree flexibility, 1.6x optical zoom, e-zoom, geometric correction tools such as horizontal and vertical keystone, edge blending, arc correction, Quick Corner® and more
  • Variety of connectivity options: HDBaseT™, HDMI®, HDMI Out, VGA, RJ-45, RS-232 and control management tools
  • Remarkable sharpness and detail: with up to 2,500,000:1 dynamic contrast ratio
  • Custom brightness and constant brightness modes: to maximize light source life and provide a consistent brightness level



Eco Features

  • RoHS compliant
  • Recyclable product4
  • Epson America, Inc. is a SmartWay® Transport Partner5

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 For wireless functionality, including via the Epson iProjection™ App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.
3 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment.
4 For convenient and reasonable recycling options, visit www.epson.com/recycle
5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications

Specifications Projector:

Projection System: RGB Liquid Crystal Shutter Projection System

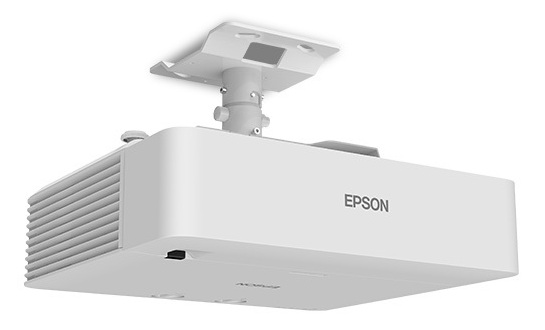

Projection Method: Front/rear/ceiling mount
LCD Screen: 0.67-inch (C2fine)
Driving Method: Poly-silicon TFT Active Matrix
Pixel Number: 2,304,000 pixels (1920 x 1200) x 3
Native Resolution: 1920 x 1200 (WUXGA)
Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Aspect Ratio: Supports 16:10
Pixel Arrangement: Cross stripe
Color Brightness1 - Color Light Output: 6,200 lumens
White Brightness1 - White Light Output: 6,200 lumens
Contrast Ratio: 2,500,000:1
Brightness Uniformity (typical): 86%
Color Reproduction: Up to 1.07 billion colors
Size (projected distance): 50" – 500"
Projected Distance 80" screen 2.33 – 3.78 m

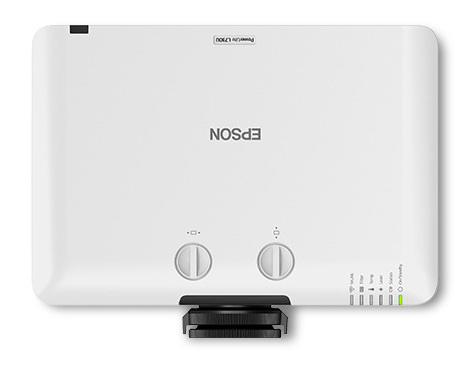

Lens Shift Vertical: ±50%; horizontal: ±20%
Keystone Correction: Vertical: ±30 degrees; Horizontal: ±30 degrees
Illumination Technology: Laser Diode
Light Source Life2: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours

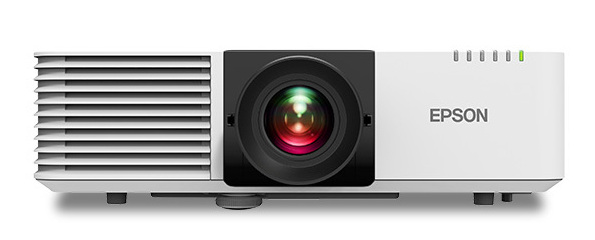

Projection Lens:

Type: Optical Zoom (Manual) / Focus (Manual)
F-number: 1.5 – 1.7
Focal Length: 20.0 – 31.8 mm
Zoom Ratio: Optical zoom 1 – 1.6x
Throw Ratio Range: 1.35 – 2.20
Lens Cover: Lens cap (without string)

Wireless Specifications:

Frequency Type (Modulations): 802.11b/g/n (2.4 GHz)
Supported Security Type: Quick Mode: OPEN, WPA2-PSK
Advanced Mode: WPA/WPA2-PSK, WPA/WPA2-EAP

Other Features

Operating Temperature: 32° to 113°F (0° to 45°C)
Fan Noise: 38 dB (Normal Mode); max. 27 dB (ECO Mode)
Security: Security cable hole, Kensington lock provision
A/V Mute: Yes
Speaker(s): 10 W (mono)
Screen Mirroring: Yes
Split Screen: Yes
Content Playback: Yes
Quick Corner: Yes
Arc Correction: Yes
Edge Blending: Yes
Screen Sharing: Yes

Power:

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
Power Consumption: 358 W (Normal Mode)
267 W (Quiet and Extended)
2.0 W Standby (Communication on)
0.3 W Standby (Communication off)

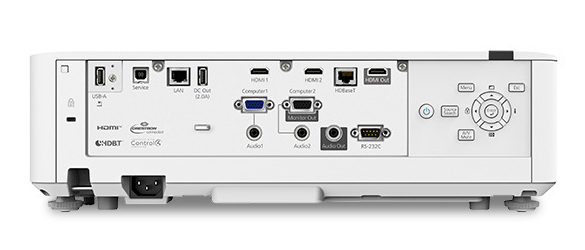

Interfaces:

  • HDMI x 2
  • HDMI Out x 1
  • VGA x 2
  • Monitor Out: Mini D-Sub 15 pin x 1
  • HDBaseT x 1
  • Audio in: Mini Stereo x 2
  • Variable audio out: Mini Stereo x 1
  • USB connector Type-B x 1
  • USB connector Type-A x 1
  • Serial: RS-232c x 1
  • Wired LAN RJ-45 x 1
  • Wireless LAN Built-in

Effective Scanning Frequency Range:

Pixel Clock: Analog: 13.5–162 MHz (up to UXGA 60 Hz)
Digital: 13.5–297 MHz
Horizontal: Analog: 15–92 kHz
Digital: 15–135 kHz
Vertical: Analog: 50–85 Hz
Digital: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz

Dimensions (W x D x H):

Including feet: 17.32" x 12.59" x 5.35" (440 x 320 x 136 mm)
Excluding feet: 17.32" x 11.97" x 4.80" (440 x 304 x 122 mm)
Weight: 18.5 lb (8.4 kg)

Remote Control:

Features: Power, source search selection, test pattern selection, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions
Operating Distance: 26 ft (7.9 m)
Operating Angle: Front: Right/Left: ±60 degrees; Upper/Lower: +30 to -20 degrees
Rear: Right/Left: ±30 degrees; Upper/Lower: +50 to +10 degrees



What's in the box

  • PowerLite L630U Projector
  • Power Cable
  • Computer Cable (HDMI)
  • Projector Remote Control with Batteries
  • Quick Setup Sheet
  • Cable Cover

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment.
