Epson PowerLite 770F

1080p 3LCD Ultra Short Throw Laser Display

Captivate and inspire students with the eye-catching, easy-to-read display of the PowerLite^® 770F. With its intelligent ultra short throw design, the dynamic PowerLite 770F delivers stunning HD images up to 150" — which is 2.4 times larger than a 75" flat panel — and can be easily seen from nearly anywhere in the classroom.

Engineered for reliability, this incredibly bright 4,100-lumen display has a 20,000-hour, virtually maintenance-free laser light source, which means there are no lamps to purchase or replace, ever. Providing wireless connectivity with casting capability and convenient split screen functionality, the PowerLite 770F makes it easy for teachers and students to display up to four screens simultaneously.

With its convenient Wake-On Sync function, the PowerLite 770F is ready to display in seconds, while supporting 16:9 as well as ultra wide 21:9 and 16:6 aspect ratios. Offering the flexibility to display on existing whiteboards, the versatile PowerLite 770F delivers even more value by allowing teachers to retain valuable whiteboard space when not in use.

Key Features:

• Best-in-Class Color Brightness of 4,100 lumens
• Full HD 1080p resolution for exceptional image quality
• No lamps to replace ever with solid-state laser light source
• Convenient ultra short throw design
• 16:9 display with additional support for ultra wide 21:9 and 16:6
• Free, easy-to-use content management software

Note: The PowerLite 770F is a white model. For a black model, see the PowerLite 775F.

(Model: V11HA79020)

• Best-in-Class Color Brightness⁵ with 3-chip 3LCD technology: 4,100 lumens of color and white brightness¹

• Flexible display: 16:9 display with additional support for ultra wide 16:6 and 21:9 format is ideal for large, multi-device, split screen images⁴

• No lamps to replace ever: Solid-state, 20,000-hour, virtually maintenance-free laser light source²

• Connect and cast from up to 50 devices³: Free downloadable Epson iProjection™ software makes it easy to cast wirelessly from Chromebooks, iOS^® and Android™ devices, Mac^® computers and PCs³. With the moderator feature⁶, teachers never lose control of the displayed content

• Convenient ultra short throw design: Displays large true-to-life images up to 150" from less than two feet away

• Easily project wall-sized images: built-in edge blending features for easy, scalable projection

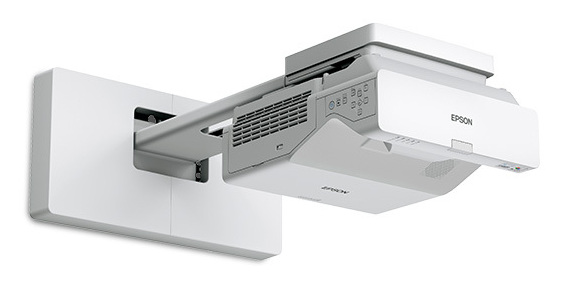

• Simple, flexible installation: 360-degree placement capabilities; mount or place the projector in any position, from landscape to portrait

• Easily programmable with the built-in media player: which includes templates, effects, color filters and customizable options; playlist and playback functions allow for seamless content management for single or multiple PowerLite projectors

• Easy access and maintenance: with remote management and control tools

Eco Features

• RoHS compliant
• Recyclable product⁷
• Epson America, Inc. is a SmartWay^® Transport Partner⁸

What's In The Box:

• PowerLite 770F
• Quick Setup Guide
• Projector remote control
• 2x AA batteries
• 6' power cord
• Projector feet

Notes:

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m³ of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

³ For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.

⁴ Split Screen feature requires remote control. Consult your user manual for input combinations.

⁵ Color brightness measured per IDMS 15.4. Additional colors and picture modes tested. Top-selling Epson 3LCD projectors vs. comparable top-selling 1-chip DLP projectors based on NPD sales data for October 2019 – September 2020. COLOR BRIGHTNESS WILL VARY BASED ON USAGE CONDITIONS.

⁶ Moderator control, connecting via QR code and projector remote are not available on Epson iProjection for Chromebooks.

⁷ For convenient and reasonable recycling options, visit www.epson.com/recycle

⁸ SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications:

Projection Lens:

Interfaces:

Other Features:

Dimensions:

Remote Control:

Warranty

3-year projector limited warranty or 20,000 hours, whichever comes first.

Notes:

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m³ of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
