Epson BrightLink 770Fi
Overview

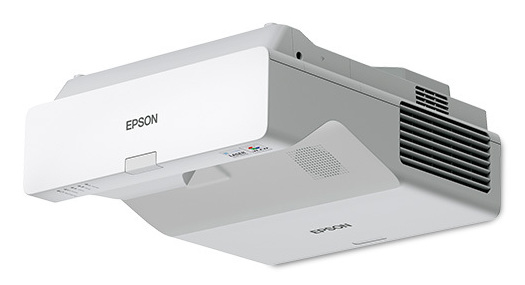

Epson BrightLink 770Fi
1080p 3LCD Interactive Ultra Short Throw Laser Display
Designed for ease of use in collaborative learning environments, the BrightLink® 770Fi ultra short throw display simplifies interactivity in the classroom by offering compatibility with frequently used software applications including Office 365® and Google Workspace™.
Offering a large full HD interactive display up to 100", the BrightLink 770Fi provides up to 75 percent more interactive space than a 75" flat panel, while providing a low cost per square inch. With 4,100 lumens of color and white brightness and proprietary 3-chip 3LCD technology, the BrightLink 770Fi delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions, from nearly anywhere in the classroom.
Flexible and convenient, it supports standard 16:9 as well as ultra wide 21:9 and 16:6 displays with split screen to simultaneously display content from a PC or document camera beside an interactive whiteboard canvas. It also includes a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace, ever.
The BrightLink 770Fi comes with wireless connectivity with casting capability and can display up to four screens simultaneously. With its unique ability to display and support interactivity on existing whiteboards, the dual-pen-enabled BrightLink 770Fi has an optional finger touch function. It delivers exceptional value by allowing teachers to retain valuable whiteboard space when the display is not in use.
Key Features:
- Best-in-Class Color Brightness of 4,100 lumens
- Full HD 1080p resolution for exceptional image quality
- Ultra wide 21:9 and 16:6 display with split screen support
- Large interactive display up to 100" (16:9), 110" (16:6)
- Multi-user capability for easy collaboration
(Model: V11HA78020)
Features
- Best-in-Class Color Brightness5 with 3-chip 3LCD technology: 4,100 lumens of color and white brightness1
- Incredible image quality: Full HD 1080p resolution for amazing clarity and readability
- Ultra wide 21:9 and 16:6 display with split screen6 support: allows for simultaneous display of whiteboard and digital content. See more, do more.
- Interactive display up to 100": Provides up to 75 percent more interactive space vs. 75" interactive panels, for a low cost per square inch
- Multi-user capability for easy collaboration: Dual-pen-enabled interactivity and optional slim design touch module allow up to eight users to collaborate at once
- Convenient connectivity: Works with popular applications and devices including Microsoft® Office 365 and Google Workspace
- PC-free digital whiteboard: draw, save, print and email without a computer. Also share whiteboard content to other networked BrightLink projectors3
- No lamps to replace ever: solid-state, 20,000-hour, virtually maintenance-free laser light source2
- Connect and cast from up to 50 devices4: free downloadable Epson iProjection™ software makes it easy to cast wirelessly from Chromebooks, iOS® and Android™ devices, Mac® computers and PCs4. With the moderator feature7, teachers never lose control of the displayed content.
- Easy-to-use interactive Home screen: with image preview capability, makes source selection easier than ever
Eco Features
- RoHS compliant
- Recyclable product8
- Epson America, Inc. is a SmartWay® Transport Partner9
What's In The Box:
- BrightLink 770Fi Ultra Short Throw Interactive Display
- Quick Start Guide
- 6' power cable
- 16' USB A/B cable
- Projector remote control
- 2x interactive pens
- 4x soft pen tips
- 2x hard pen tips
- Pen tray
- 2x AA batteries (for interactive pens)
- 2x AA batteries (for remote)
- Projector feet
- Corner markers
- Magnets for corner markers
- 1-year license key for BrightLink GoBoard Software
Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
3 Networked Screen Sharing is supported by the following models: BrightLink 725Wi, 735Fi, 760Wi, 770Fi, 1480Fi and 1485Fi.
4 For wireless functionality, including via the Epson iProjection™ App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.
5 Color brightness measured per IDMS 15.4. Additional colors and picture modes tested. Top-selling Epson 3LCD projectors vs. comparable top-selling 1-chip DLP projectors based on NPD sales data for October 2019 – September 2020. COLOR BRIGHTNESS WILL VARY BASED ON USAGE CONDITIONS.
6 Consult your user manual for Split Screen input combinations.
7 Moderator control, connecting via QR code and projector remote are not available on Epson iProjection for Chromebooks.
8 For convenient and reasonable recycling options, visit www.epson.com/recycle
9 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
Specifications
Specifications:
| Projection System: | Epson® 3-chip 3LCD technology |
| Projection Method | Front/rear/wall mount/table mount |
| Driving Method: | Epson® Poly-Silicon TFT Active Matrix |
| Pixel Number: | 2,073,600 dots (1920 x 1080) x 3 |
| Color Brightness1 - Color Light Output: | 4,100 lumens |
| White Brightness1 - White Light Output: | 4,100 lumens |
| Native Aspect Ratio: | 16:9, Supported Aspect Ratios: 4:3, 16:10, 21:9 |
| Native Resolution: | 1920 x 1080 (1080p HD) |
| LCD: | 0.62" |
| Light Source: | Laser Diode |
| Light Source Life2: | Normal mode: Up to 20,000 hours,
Extended mode: Up to 30,000 hours |
| Image Size (Projection Distance) | With ELPMB62 Mount: 56.8' – 110' (14.1' – 27.2') 21:9 60" – 110" (13.9" – 27.24") 16:6 65' – 100' (14.01' – 22.7') 16:9 |
| Keystone Correction (Manual): | Vertical: ± 3 degrees Horizontal: ± 3 degrees |
| USB Plug 'n Play: | Mac OS X® 10.8/10.9/10.10/10.11/10.12/ 10.13/10.14/macOS® 10.15.x, 11.0/12.0 |
| USB Plug 'n Play for Windows® | Windows 7/Windows 8/ Windows 10, Windows 11 |
| Contrast Ratio: | Over 2,500,000:1 |
| Color Reproduction: | Up to 1.07 billion colors |
Wireless Specifications:
| Supported Security Mode: | OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast |
| Supported Speeds: | IEEE 802.11 b: 11 Mbps* (2.4 GHz) IEEE 802.11 g: 54 Mbps* (2.4 GHz) IEEE 802.11 n: 72.2 Mbps* (2.4 GHz) IEEE 802.11 a: 54 Mbps* (5 GHz) IEEE 802.11 n: 150 Mbps* (5 GHz) IEEE 802.11 ac: 325 Mbps* (5 GHz) * These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions |
Projection Lens:
| Type: | Manual focus |
| F-number: | 1.6 |
| Focal Length: | 3.7 mm |
| Throw Ratio Range: | 0.25:1 (up to 0.35:1 with digital zoom) |
| Zoom Ratio: | Digital zoom 1.0 – 1.35x |
Interfaces:
| Input/Output: |
|
Other Features:
| Speaker: | 16 W monaural |
| Operating Temperature: | 41° to 104°F (5° to 40°C) (20% – 80% humidity, no condensation) |
| Power Supply Voltage: | 100 – 240 V AC ± 10%, 50/60 Hz |
| Power Consumption: | Normal Mode: 277 W Quiet Mode: 214 W Standby (Communication On): 2.0 W Standby (Communication Off): 0.5 W |
| Fan Noise: | Normal Mode: 37 dB Quiet Mode: 27 dB |
| Security: | Kensington lock provision, security anchor bar, password-protection function |
Interactivity:
| Interactive Technology: | Infrared, 850 nm |
| Interactive Area (Image Size): | 100" diagonal (16:9); 110" diagonal (16:6) |
| Interactive Modes: | Computer Interactivity, PC-Free and Whiteboard Annotation Mode; Pen: Dual User; Finger Touch: Up to 6 points of touch |
| PC-Free Annotation: | 2 pens and 6 fingers |
| Interactive Tools: | Epson Easy Interactive Tools; 2 pens and 6 fingers |
| PC Interactive Sources: | USB, HDMI, Computer 1, Computer 2, LAN, Miracast® |
| PC-Free Annotation Devices: | Document Cameras, DVD/ Blu-ray Disc™ players, iPod®/iPad® devices, Chromebooks |
| Calibration Method: | Automatic or Manual |
| Interactive Connectivity: | USB cable for non-networked LAN |
| Interactive Software Requirements: | Epson Easy Interactive Driver (required for Mac) Mac: Mac OS X 10.12/10.13/10.14/macOS 10.15.x, 11.0/12.0/13.0 Epson Easy Interactive Tools for Windows and Mac |
| System Compatibility: | Microsoft, Windows 8/8.1, Windows 10, Windows 11, Windows 7 SP1 (all editions except for Starter), Mac OS 10.11/10.12/10.13/10.14, macOS 10.15.x, 11.0/12.0/13.0 |
| Gestures: | Requires Windows 7 or later, or Mac OS X 10.12 or later |
| BrightLink GoBoard™ Software Requirements: | Windows 10 version 1803 or later CPU quad-core 2 GHz RAM DDR3 8 GB Camera and microphone (for AV conferences, voice commands) |
Dimensions:
| W x D x H: | 14.1" x 15.6" x 5.3" (358 x 396 x 135 mm) excluding feet |
| Weight: | 13.2 lb (6.0 kg) |
Remote Control:
| Features: |
Computer, HDMI, USB, LAN, Source Search, Power, Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu, Auto, Enter, Esc, User, ID, Default, Home, Split |
| Operating Distance: | 19.7 ft (6 m) |
| Operating Angle: | Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees |
Warranty
3-year projector limited warranty
Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
