Epson BrightLink 1480Fi

Laser LCD Projector, 1366x768 WXGA, 5000 Lumens, UST
Part #: 0600-6256    Mfr #: V11H921520

Epson BrightLink 1480Fi

Overview

Epson BrightLink 1480Fi

3-LCD Interactive Laser Ultra-Short Projector

Increase engagement and collaboration in classrooms and meeting spaces with the dynamic BrightLink 1480FiA native resolution of 1366x768 pixels can be increased 1080 vertical with pixel shifting. Designed with convenience in mind, this ultra bright, 5,000-lumen ultra short-throw projector offers easy installation and a virtually maintenance-free 20,000-hour laser light source with no lamps.

Offering a 16:9 display up to 100" diagonal, the 1480Fi provides 75 percent more interactive space than 75" panels for a fully immersive display in meeting spaces and classrooms. With support for optional BrightLink touch modules, it allows up to eight users to work on a single interactive canvas. Plus, it comes with a host of PC-free features including collaborative whiteboard sharing, printing, emailing and more.

Note: Wall mount is not included. (See Accessories tab.)

Features

Key Features:

  • Super bright: 5,000 lumens color/white brightness2up to 1366 x 1080 resolution (with pixel shifting).
  • Flexible image sizes: the flexible 1485Fi projects large, 100" diagonal images, offering up to 75 percent more interactive space versus a 75" flat panel.
  • Solid-state laser light source: virtually maintenance-free 20,000-hour laser light source with no lamps3
  • Easy installation: automatic image adjustment and simplified calibration makes installation easier than ever before
  • Digital whiteboard: draw, save, print and email without a PC; share whiteboard content to other network-connected BrightLink projectors4
  • Easy operation: touch and pen-enabled interactivity5 allows up to eight users to collaborate at once

Other Features:

  • Improved cable management: HDBaseT control pad supports video, audio and interactive functions, reducing the number of cables and making installation a snap6
  • Built-in wireless: use free Epson iProjection software to connect, display and share content simultaneously to/from up to 50 connected devices7
  • Connect with Miracast®: supports software-free, peer-to-peer wireless connectivity
  • SMART Learning Suite: includes 1-year subscription and support for SMART Notebook®, SMART amp, SMART lab, SMART Learning Suite Online and more

Eco Features

  • RoHS compliant
  • Recyclable product8
  • Epson America, Inc. is a SmartWay™ Transport Partner9

Notes
Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
3 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
4 BL1485Fi and 1480Fi projectors only. Cannot share to earlier models.
5 Requires Windows® 7, Windows 8 or Mac® OS X® or later to recognize finger gestures.
6Supports maximum distance up to 225 feet (Cat6A/7; 1080p) and up to 130 feet (Cat6A/7; 4K content)
For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.
For convenient and reasonable recycling options, visit www.epson.com/recycle
SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Specifications and terms are subject to change without notice.

Specifications

Specifications Projector:

Projection System: Epson 3LCD, 3-chip technology
Projection Method: Ceiling/wall mount/table mount
Driving Method: Epson Poly-silicon TFT Active Matrix
Resolution:

1366 x 768 native, 1080 vertical resolution with pixel shifting

Color Brightness - Color Light Output: 5,000 lumens1
White Brightness - White Light Output: 5,000 lumens1
Aspect Ratio: 16:9 (native), supports 4:3, 16:10
Size - projected distance: (16:9) 65" – 100"
Keystone Correction: Vertical:     ±3 degrees
Horizontal: ±3 degrees
USB Plug 'n Play: Mac®10.4 or later
Windows 7 or later
Contrast Ratio: Up to 2,500,000:1
Color Reproduction: Up to 1.07 billion colors
Light Source Life: 20,000 hours (Normal)
30,000 hours (Extended)
2
Illumination Technology: Laser Diode

General:

Operating Temperature: 32° to 104° F (0° to 40° C)
Security: Kensington lock provision, security anchor bar, password-protect function
Power Supply Voltage: 100 – 240 V ± 10%, 50/60 Hz
Power Consumption: ECO Mode: 270 W
Normal Mode: 381 W
Standby (Communication On): 2.0 W
Standby (Communication Off): 0.5 W
Dimensions (WxDxH): 18.1" x 18.2" x 14.8"
Weight: 21.4 lbs with cable cover (9.7 kg)

Projection Lens:

Type: Manual focus
F-number: 1.50
Focal Length: 3.9 mm
Zoom Ratio: Digital zoom 1.0 – 1.35x
Throw Ratio Range: (16:9) 0.27 – 0.37, (4:3) 0.37 – 0.50, (16:10) 0.30 – 0.42

Projector Details:

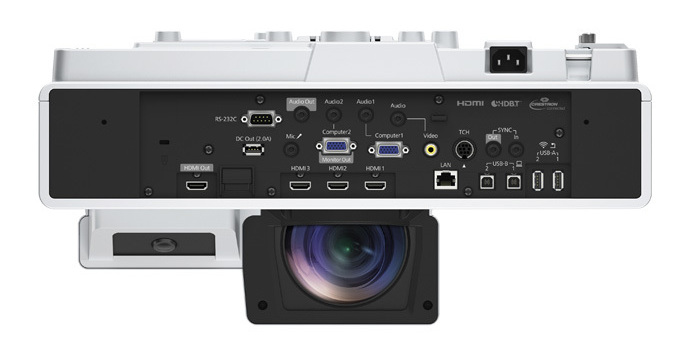

Interfaces:
  • HDMI®: 3
  • HDMI Out: 1
  • Computer/Component Video: 2x D-sub 15 pin
  • Composite Video: 1x RCA (Yellow)
  • Audio In: 3x Mini stereo
  • Audio Out: 1x Mini stereo
  • Microphone In: 1
  • USB Connector: 2x Type B (USB display, audio and mouse, k/b control interactivity)
  • USB Connector: 2x Type A (USB memory/document camera)
  • 1x RJ-45
  • Serial: 1x RS-232c
  • Monitor Out: 1x D-sub 15 pin (shared with computer 2)
  • Integrated Wireless LAN: 802.11 b/g/n/ac
  • Interactive Synchronization: Mini Stereo In
  • Interactive Synchronization: Mini Stereo Out
  • Touch Unit Connection Port
Speaker: 8 W x 2
Fan Noise: Quiet mode:     27 dB
Normal mode:  36 dB

Interactive Specifications:

Interactive Technology: Infrared, 850 nm
Interactive Modes: Whiteboard Mode: 2x pens and 6x fingers PC-free
Annotation Mode: 2x pens and 6x fingers
Computer Interactivity Mode, Easy Interactive Tools: 2x pens and 6x fingers
Interactive Area: 65" – 100" diagonal (16:9)
System Compatibility: Microsoft® Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) macOS 10.11/macOS 10.12.x, UBUNTU, 16.04 LTS, 19.04, 18.04 LTS

Interactive Input Device:

Type of Interactive Input Device: Digital pen or finger
Multiple Pen Support: Yes
Interactive Pen Functions: Mouse functions (left and right click), electronic pen, LED battery status indicator
Compatible Pen Battery Types: AA x 1, Manganese dry cell, Alkaline dry cell, Panasonic eneloop® BK-3MCCx
Interactive Pen Weight: 1.1 oz (without battery)
Interactive Pen Dimensions: 6.3" (L) x 0.95" (W)

Interactive Software

Other Software:

Epson Easy Interactive Driver (Mac and PC — required for DuoLink)
Windows and Linux: driver not required
Mac OS X 10.7/10.8/10.9/10.10/10.11/macOS® 10.12.x: Epson Easy Interactive Tools for Windows and Mac

Warranty

3-Year Projector Limited Warranty



What's In The Box:

  • BrightLink Pro 1480Fi
  • Lens cover
  • Rear cable cover
  • Quick Setup Guide
  • 6' power cable
  • USB A/B cable (x3)
  • Projector remote control with two AA batteries
  • Pen holder
  • Markers for auto screen adjustment
  • IR reflectors
  • Two (2) interactive pens
  • Extra pen tips
  • Battery charger and two (2) AA rechargeable batteries (for interactive pens)
  • Warranty statement
  • SMART SLS redemption code

Notes:
1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
