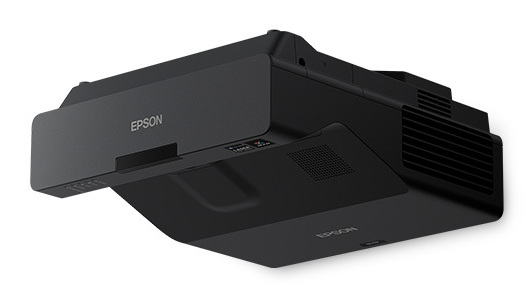

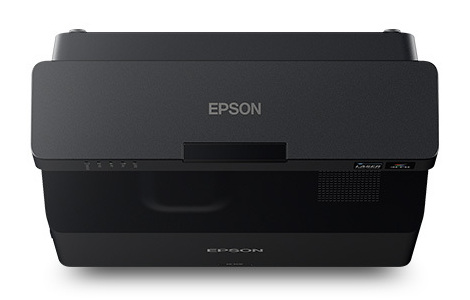

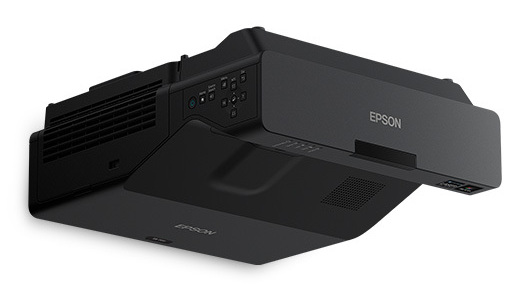

Epson PowerLite 755F

Laser LCD UST Projector, 1080p, 3600 Lumens, D:W 0.26:1, Black, 3-year warranty
Part #: 0600-6260    Mfr #: V11HA08620

Epson PowerLite 755F

Overview

Epson PowerLite 755F

Full HD 1080p Ultra Short-throw Laser Projector with Built-in Wireless

Bring captivating, custom digital signage to nearly any location with the sleek PowerLite 755F ultra short-throw laser projector. Providing over 3,600 lumens of brightness and Full HD 1080p technology, this ultra bright projector delivers vibrant, true-to-life images up to 110" (16:6) or 120" (16:9) diagonal, ideal for installation in small spaces.

The perfect choice for creative signage applications, including in-store displays, museum exhibits and more, the PowerLite 755F arrives with free downloadable content management software that lets you easily customize, playback and upload creative displays directly from the projector. Built with durability and reliability in mind, this projector also offers a long-lasting virtually maintenance-free 20,000-hour laser light source with no lamps to replace



Key Features:
  • 3,600 lumens of color and white brightness
  • Full HD 1080p resolution
  • Project up to 110" (16:6); 120" (16:9) diagonal
  • 20,000-hour laser light engine with no lamps
  • Built-in edge blending and split screen features
  • Content management software and creative content app for easy creation and management of content for digital signage

(Model: V11HA08620)

Features

Bright, high-resolution projection system

  • Up to 3600 lumens of color brightness (color light output) and white brightness (white light output)1
  • Native resolution of 1920 × 1080 pixels (1080p)

Flexible connectivity

  • Three HDMI ports for computer or video device connection
  • Plug-and-play USB projection and audio for instant setup
  • Wired and wireless network support for projection
  • Screen mirroring to connect your mobile device wirelessly using Miracast technology
  • Projector monitoring and control via remote network computer
  • PC Free photo slide shows via connected USB memory devices or Epson document camera
  • Use Epson iProjection (Windows/Mac) to simultaneously project up to four images from network computers or mobile devices using the Epson iProjection app
  • Projection from an iOS device, Android device, or Chromebook with the free Epson iProjection app.2

Innovative display and operation features

  • Long-life laser light source
  • Support for side-by-side projector mounting
  • High digital zoom ratio for larger images in shorter projection distances (ultra short throw ratio of 0.26:1)
  • 2,500,000:1 contrast ratio and Dynamic Contrast control for sharp, detailed images
  • Built-in closed captioning decoder
  • Powerful 16 W speaker system with audio out port for connecting external speakers
  • Epson's Direct Power On and Auto Power On features for quick and easy setup
  • Epson Content Management software for signage includes preset overlay filters, customizable options, playlist and scheduling functions with supplemental web app control.
  • Support for Crestron RoomView network monitoring systems
  • Network message broadcast system to project timely messages to all networked projectors

Notes:

Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Visit epson.com/iprojection (U.S.), epson.ca/iprojection (Canada), or latin.epson.com/iprojection (Caribbean) for more information.

Specifications

General Specifications

Type of display Poly-silicon TFT active matrix
Resolution 1920 × 1080 pixels (1080p)
Case color Black
Lens F = 1.6; Focal length = 3.7 mm
Throw ratio 0.26:1
Color reproduction Full color, up to 1.07 billion colors
Brightness1 Normal Light Source Mode:
  - White light output 3600 lumens
  - Color light output 3600 lumens
Quiet or Extended Light Source Mode:
  - White light output 2500 lumens
Custom mode:
  - White light output 2500 to 3600 lumens
Contrast ratio Over 2,500,000:1 with Dynamic Color Mode, Normal Light Source Mode, and Wide Zoom on
Image size (in native aspect ratio) 65 inches (1.65 m) to 120 inches (3.05 m)
Projection distance 2.2 inches (5.5 cm) to 15.3 inches (38.7 cm)
Projection methods Front, rear, wall-mounted, table-mounted, ceiling-mounted
Optical aspect ratio (width-to-height) 16:9
Focus adjustment Manual
Zoom adjustment Digital
Zoom ratio (Tele-to-Wide) 1.0 to 1.35
Internal sound system 16 W monaural
Noise level 36 dB (Normal Light Source Mode)
26 dB (Quiet Light Source Mode)
Keystone correction angle ± 3°
USB Type B port compatibility USB 2.0 compliant for USB Display, firmware update, or copying menu settings
USB Type A port compatibility One USB 2.0 compliant port for USB memory device, Epson document camera, firmware update, or copying menu settings. One USB 2.0 compliant port for WLAN only

Light Source Specifications

Type Laser Diode
Power consumption Normal Light Source Mode: 267 W
Quiet or Extended Light Source Mode: 206 W
Light source output power Up to 81 W
Wavelength 449 to 461 nm
Light source life2 Normal or Quiet Light Source Mode: Up to about 20,000 hours
Extended Light Source Mode: Up to about 30,000 hours

Remote Control Specifications

Reception range 19.7 feet (6 m)
Batteries Two alkaline or manganese AA

Dimensions Specifications

Height (excluding feet) 5.3 inches (133 mm)
Width 14.0 inches (356 mm)
Depth 15.6 inches (395 mm)
Weight 12.6 lb (5.7 kg)

Electrical Specifications

Rated frequency 50/60 Hz
Power supply 100 to 240 VAC ±10%
1.2 to 2.7 A
Power consumption (100 to 120 V) Operating:
Normal Power Consumption Mode: 267 W
Extended or Quiet Power Consumption Mode: 206 W
Standby:
0.5 W (Communication Off)
2.0 W (Communication On)
Power consumption (220 to 240 V) Operating:
Normal Power Consumption Mode: 255 W
Extended or Quiet Power Consumption Mode: 197 W
Standby:
0.5 W (Communication Off)
2.0 W (Communication On)

Environmental Specifications

Temperature Operating - Single projector:
  32 to 104 °F (0 to 40 °C)
Operating - Multiple projectors:
  32 to 95 °F (0 to 35 °C)
Storage:
  14 to 140 °F (-10 to 60 °C)
Humidity (relative, noncondensing) Operating: 20 to 80%
Storage: 10 to 90%
Operating altitude Up to 7500 feet (2286 m)
Up to 10000 feet (3048 m) with High Altitude Mode enabled

Notes:

Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Turn off this product when not in use to prolong the life of the projector. Laser life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.
