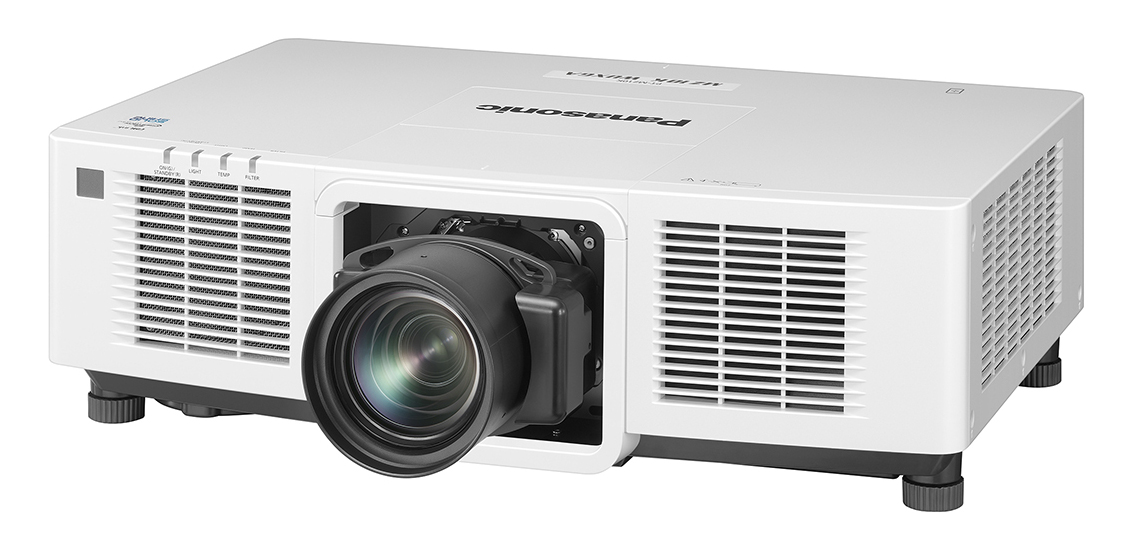

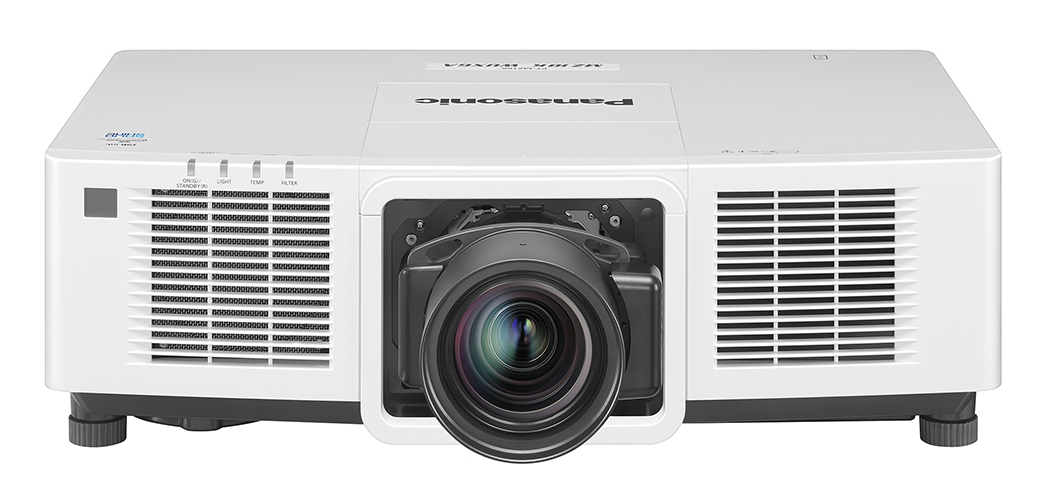

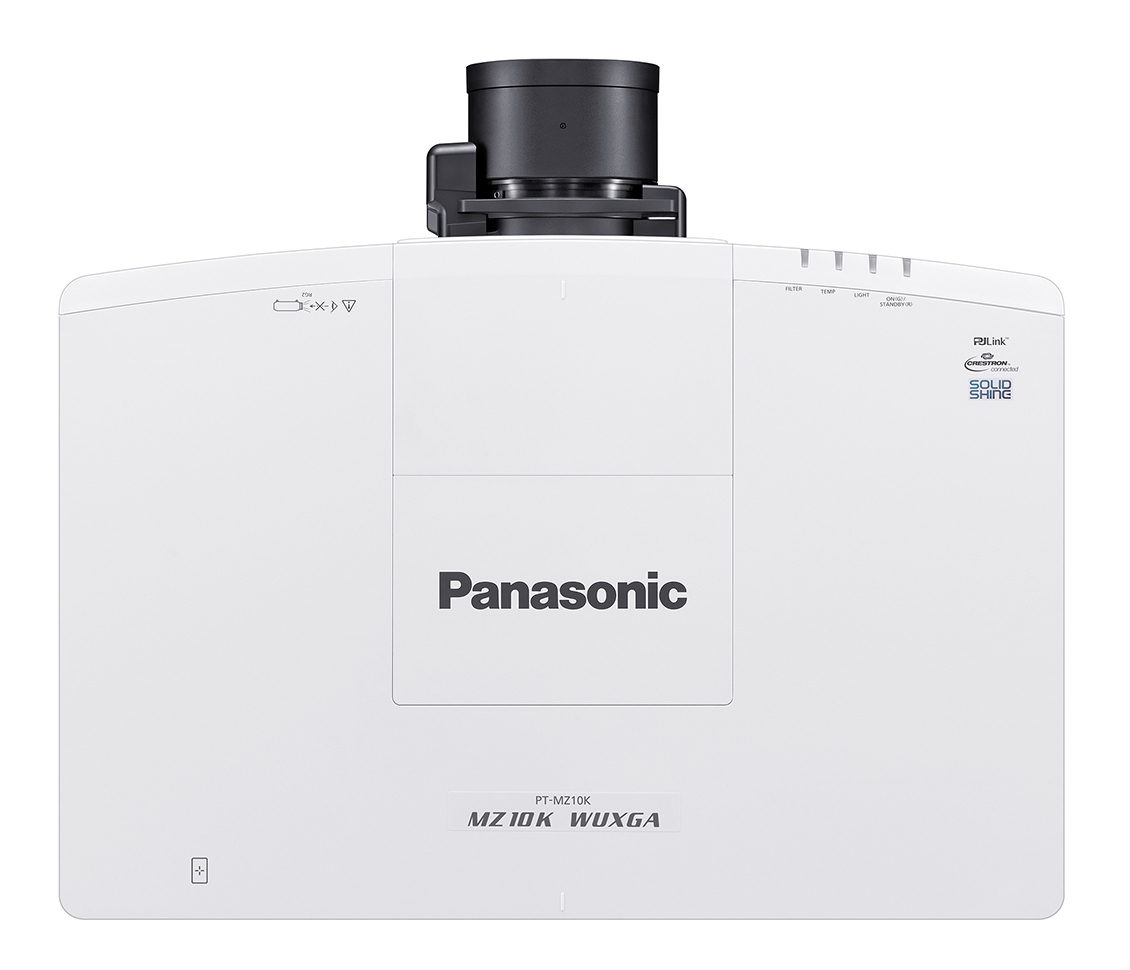

Panasonic PT-MZ10KLWU

Panasonic PT-MZ10KLWU Laser Phosphor LCD Projector, 1920x1200 WUXGA, 10,000 Lumens, No Lens, White, 3 year warranty
Part #: 0600-7134    Mfr #: PTMZ10ULW

Panasonic PT-MZ10KLWU

Overview

Panasonic PT-MZ10KLWU

Harnessing 10,000 lumens at WUXGA resolution with new 15.4 mm (1-inch) LCD panels, Multi-Laser Drive Engine, and Pure White Generator technology, the PT-MZ10KLWU produces consistently sharp and vibrant picture quality.

It is among the first Panasonic LCD models with liquid-cooled lasers which also features dedicated, sealed phosphor-wheel cooling, laser failover circuitry, flexible backup input-switching, and Information Monitor for interruption-free long-life reliability.

This compact projector (weighs under 49.2 lbs with standard lens) supports Panasonic-original Smart Projector Control Ver. 2.0 app and Geo Pro software. Exclusive new lenses eliminate throw-ratio gaps and make integration seamless. It also supports 4K/60p signal input (converted to the projector's WUXGA resolution upon projection).

The SOLID SHINE LCD boosts imagine brightness while reducing your workload, delivering an effortless learning experience. It is ideally suited for house of worship, education and corporate use.

(Lens is sold separately.)

Features

Clear, Long-Lasting Viewing for Efficiency and Comfort

  • Pure White Generator enriches colors with 10,000 lm brightness — improves color accuracy and create vibrant, natural, true-to-life colors that appear brighter and deeper on screen, regardless of the installation site and ambient light levels.

Reliable Operation Reduces Callouts in Real-World Conditions

  • Our First LCD Projectors with Liquid Cooling for Multi-Laser Drive (NEW)  allows high-brightness projection in elevated locations and hot environments as well as whisper-quiet 30–35 dB operation.

    Panasonic’s original phosphor-wheel sealed cooling system (NEW)  protects against dust-particle intrusion for extended reliability and consistent brightness.

  • Multi-Laser Drive Engine with failover redundancy circuits  adds an invaluable layer of insurance when image presentation must not be interrupted.

  • Backup input switching maintains picture display  If signal transmission to the primary input fails, projection continues via the assigned backup input without screen blanking.

  • New Information Monitor on the rear panel  The monitor provides menu-based navigation for smooth setup of Projector ID and basic network configuration. It also shows projector status including temperature, runtime, and active signal data, as well as error codes should a problem be detected.

Simplified Installation Streamlines Your Workflow

  • Supports uncompressed 4K/60p video-signal input via HDMI® or DIGITAL LINK terminals

  • First LCD Projectors to Support Geometry Manager Pro Software (NEW)

  • Geometric Adjustment with Free Grid correction via remote control  Areas of the image can be reshaped or geometrically altered to compensate for screen distortions

  • Remote app with NFC (Near Field Communication) function and projector auto-focus via device’s camera (NEW)

  • New lineup of seven optional lenses with AFO sensor which optimizes focus as lens temperature fluctuates, keeping images pin-sharp and reducing need for manual calibration. (NEW)

  • Quiet operation for distraction-free viewing

Other Features

  • Dynamic contrast of 3,000,000:1*1 for natural image expression

  • Detail Clarity Processor 4 Provides pin-sharp insight

  • Color Adjustment function

  • No light-source replacement for 20,000 hours*2

  • Reusable ECO filter replacement extended to 20,000 Hours*3

  • Single-cable DIGITAL LINK connection for AV and control signals

  • Separate LAN/DIGITAL LINK terminals

  • Free 360-degree installation

  • Multi Monitoring & Control Software and Early Warning Software

  • Quick Start and Quick Off

  • Fade In and Fade Out


Notes:

*1 With image mode set to “Dynamic” and [Dynamic Contrast] set to [3].

*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [2], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.

*3 Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.

Specifications

Projector type LCD projector
LCD PANEL
  Panel size 25.4 mm (1.0 in) diagonal (16:10 aspect ratio)
  Display method Transparent LCD panel (x 3, R/G/B)
  Drive method Active matrix method
  Pixels 2,304,000 (1920 x 1200) pixels x 3
Light source Laser diodes
Light output*1 10,000 lm
Time until light output declines to 50 %*2 20,000 hours (NORMAL)
Resolution 1920 x 1200 pixels
Contrast ratio*1 3,000,000:1 (Full On/Full Off)
With [Dynamic Contrast] set to [3]
Screen size (diagonal) 2.03–12.7 m (80–500 in), 16:10 aspect ratio
Center-to-corner zone ratio*1 85 %
Lens Optional powered zoom lenses
LENS SHIFT
  Vertical (from center
  of screen)
±60 % with ET-EMS600 (±40 % with ET-EMW200, ±50 % with ET-EMW300) (powered)
  Horizontal (from center
  of screen)
±20 % with ET-EMS600 (±19 % with ET-EMW200) (powered)
Keystone correction range Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500), Horizontal: ±15° (±8° with ET-EMW200/ET-EMW300)
Keystone correction range with optional ET-UK20 Upgrade Kit Vertical: ±40° (±14° with ET-EMW200/ET-EMW300, ±22° with ET-EMW400/ET-EMW500), Horizontal: ±40° (±8° with ET-EMW200/ET-EMW300, ±15° with ET-EMW400/ET-EMW500)
When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 °.
Installation Ceiling/floor, front/rear, free 360-degree installation
TERMINALS
  SDI IN BNC x 1: 3G/HD-SDI input
  HDMI IN HDMI 19-pin x 1 (Compatible with HDCP 2.2, Deep Color, 4K/60p signal input*3)
  DVI-D IN DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
  RGB IN D-sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
  SERIAL/MULTI PROJECTOR      SYNC IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
  SERIAL /MULTI PROJECTOR      SYNC OUT D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
  REMOTE 1 IN D-sub 9-pin (female) × 1 for external control (parallel)
  REMOTE 2 IN M3 x 1 for wired remote control
  REMOTE 2 OUT M3 x 1 for link control (for wired remote control)
  DIGITAL LINK RJ-45 x 1 for network and DIGITAL LINK (video/network/serial control) connection (HDBaseT™ compliant), 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net, HDCP 2.2, Deep Color, 4K/60p signal input*3)
  LAN RJ-45 x 1 for network connection, 10Base-T, 100Base-TX (Compatible with PJLink™ [Class 2], Art-Net)
  DC OUT USB Connector (Type A) x 1 (Output 5 V/2 A)
Power supply AC 100–240 V, 50/60 Hz
Power consumption 640 W
Cabinet materials Molded plastic
Filter Included (Estimated maintenance time: approx. 20,000 hours)
Operation noise*1 35 dB (NORMAL) / 30 dB (Quiet)
Dimensions (W×H×D) 650 x 185*4 x 440 mm (25 19/32" x 7 9/32"*4 x 17 5/16" ) (Without lens, not including protruding parts)
Weight*5 Approx. 22.3 kg (49.2 lbs)
Operating environment Operating temperature: 0–45 °C (32–113 °F)*6; Operating humidity: 10–80 % (no condensation)
Applicable software Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Kit), Smart Projector Control for iOS/Android™

Notes:

*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.

*2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [2], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.

*3 4K signals are converted to the projector's resolution (1920 x 1200 pixels) upon projection. Supported terminals: DIGITAL LINK/HDMI®.

*4 With legs at shortest position.

*5 Average value. May differ depending on the actual unit.

*6 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 35 °C (95 °F) or higher, the light output may be reduced to protect the projector.

Accessories

Optional Lenses

Model ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500 ET-EMS600
Std lens
ET-EMT700 ET-EMT800
Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart
ET-EMW200 ET-EMW300 ET-EMW400 ET-EMW500 ET-EMS600 ET-EMT700 ET-EMT800
D:W
WUXGA
0.480 – 0.550:1 0.550 – 0.690:1  0.690 – 0.950:1 0.950 – 1.36:1 1.35 – 2.10:1 2.10 – 4.14:1 4.14 – 7.40:1
f/stop 1.84 – 2.14 1.84 – 2.24 1.84 –2.24 1.80 – 2.35 1.75 – 2.17 1.82 – 2.53 1.85 – 2.39



Other Accessories

VCM-U mount Ceiling mounts
ET-RFM100 filter Replacement filter ET-RFM100 $145.00
Add to Cart
ET-YFB100G Digital Interface Box Digital interface box (switcher) ET-YFB100G $950.00
Add to Cart
ET-YFB200G Digital Link Switcher
ET-YFB200G

Add to Cart
