Laser LCD Projector WUXGA/4K UHD, 19K ANSI Lumens, includes NP47ZL Lens, 5 year warranty
Item #0601-3280 Model #PX2000UL47ZL



Compact, 20,000-lumen, 1-chip DLP laser projector delivers impressive pictures at high brightness

With an attractive price/performance ratio and low maintenance, the single chip 20,000 center lumen laser projector delivers large venue projection at near 3-chip imaging performance. Producing richly intense colors powered by additional red laser technology, far beyond that previously possible with 1-chip DLP technology, the PX2000UL achieves a wide color spectrum covering REC709 standard.

The filter-free sealed optical system means no dust can impact the Constant Light Output ensuring impressive longevity and minimal maintenance. Combined with its low fan noise, light weight for easy handling, and outstanding installation and setup features, this innovative projector targets applications in higher education, retail, transportation (rail stations), museums, and amusements parks where large scale high bright imaging must be achieved to a budget.

This projector comes with a NP47ZL lens (D:W 1.5–2.0:1).

PX2000UL components


Outstanding Picture through Advanced Laser Technology

Vivid Color Performance: produces richly intense colors far beyond that previously possible with 1-chip DLP technology through additional red laser technology, the PX2000UL achieves a wide color spectrum covering the REC709 standard with unsurpassed brightness (supported by a special Brightness Boost Mode) for the ultimate experience.

No More Lamp Replacements: up to 20,000 hours* of maintenance-free operation is possible due to the laser light source while enjoying a Lower TCO. This projector has the ability to control brightness, creating a stable image over longer time periods. (* Actual hours may vary depending on usage conditions.)

Dust-proof due to the Cycle Cooling System: filter-free dust-proof design prevents the staining of optical components from the ingress of dust and the deterioration of brightness and image quality. the laser projector uses a special NEC phosphor wheel requiring minimal attention during its lifetime beyond its initial setup.


Advanced Installation Capabilities

360 ° Positioning in Any Direction: this projector can be installed universally at any angle. Tilt-free, roll-free and portrait installations are supported. The projector can be rotated freely (360°) to point up or down depending on the installation requirements and can be rotated and installed on its side to create a portrait image.

Geometric Correction: projection is not confined to a standard flat screen or wall. Geometric correction allows this model to project an image on spheres, cylinders, and many more non-standard surfaces.

Edge Blending Function: seamlessly blends multiple projected images to display a single high-resolution image.

Stacking Correction: allows the projectors to boost an image’s brightness up to 80,000 lumens (center), which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.

Optional Lenses and Lens shift: Enjoy greater installation flexibility with a complete line of five motorized optional lenses. Lens throw distances range from 3.3 to 243 feet (1 to 74 m). Wide vertical and horizontal lens shift (50% or 45% vertically and 15% horizontally) is available. Motorized lens shift, focus and zoom allow easy and flexible setup without the need for cumbersome physical access to the projector. (NP47ZL lens included.)

Easy handling: light weight construction (112 lbs, 51 kg) and robust design make this model semi-portable.


Compatible with Diverse Signal Sources

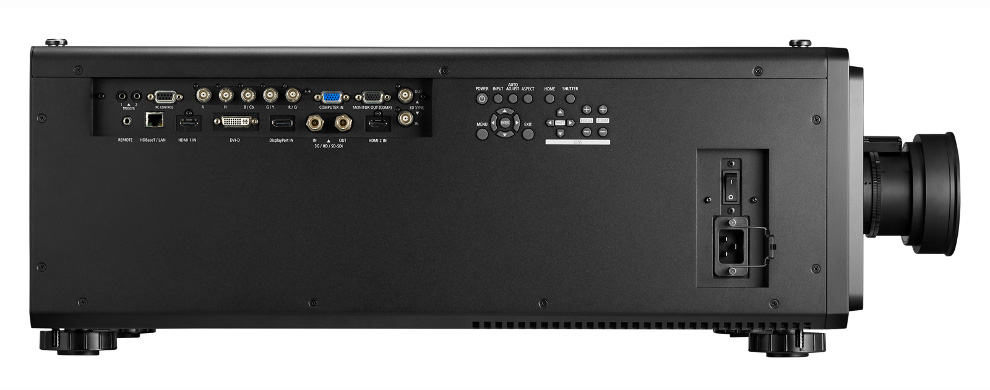

Equipped with a wide range of inputs, such as HDMI®× 2, DisplayPort™, HDBaseT™, SDI, Computer, DVI-D, and BNC terminals. (See image on the left for a full view of all the I/O terminals.)

Supports HDMI 3D format: watch videos in 3D using commercially-available 3D emitters that support XPAND 3D and active shutter-type 3D eyewear. Also compatible with 3D images in the DLP® Link format.

HDBaseT Support: simplify your installations with HDBaseT, which is optimized for video applications and supports uncompressed full HD digital video, audio, Ethernet, power and various control signals.


Other Useful Functions and Features

  • Eco mode and light source power adjustment
  • Center lens design for easy setup
  • Remote control ID
  • Direct power on/off, auto power on/off


Network Control

  • NaViSet Administrator 2
  • PJLink
  • HTTP server (projector adjustment)


Projector Type 1 chip DMD reflection type
Specifications of main parts Main panel Size 0.96 inch DMD (aspect ratio: 16:10)
Resolution WXGA (1,920 dots × 1,200 lines)
Pixels*1 2,304,000 pixels
Projection lenses Model NP45ZL, NP46ZL, NP47ZL (included), NP48ZL, NP49ZL
Zoom/Focus Motorized
Throw ratio Ranges from 0.9:1 to 7.0:1  (See Accessories tab.)
Lens shift 50% or 45% vertically and 15% horizontally (Refer to Lens specifications.)
Light source Blue laser diode / Red laser diode
Light source (laser diode) life*2 20,000 hours
Optical unit C/W type (DLP) Color separation by color wheel;
time-multiplexing color wheel method
Light output*3*4 Boost mode 19,000 lumens / 20,000 lumens (center)
Normal mode 18,000 lumens / 19,000 lumens (center)
Contrast ratio*4 (all white/all black) 10,000:1 with dynamic contrast
Screen size Please refer to the specifications of option lens
Color reproduction 10-bit signal processing (approx. 1.07 billion colors)
Quietness (ECO mode/ECO mode off) 43 dB / 45 dB
Scanning frequency (Synchronization) Horizontal 15 kHz, 24 to 153 kHz
Vertical 24 Hz, 25 Hz, 30 Hz, 48 Hz, 50 to 85 Hz, 100 Hz, 120 Hz
Max. display resolution
(horizontal × vertical )
Digital: 2,560 × 1,600 (WQXGA)
Analogue: 1,920 × 1,200 (WUXGA)
Keystone correction Horizontal Manual, Approx. ± 60 Max degrees
Vertical Manual, Approx. ± 40 Max degrees
Input/output connectors HDMI® Video input HDMI® Connector type A × 2 Deep Color (color depth): 8-/10-/12-bit compatible Colorimetry: RGB, YCbCr444, YCbCr422, YCbCr420, REC2020, REC709, REC601 Supports HDCP*5
DisplayPort™ Video input DisplayPort × 1 Data rate: 5.4 Gbps/2.7 Gbps/1.62 Gbps, No. lanes: 1 lane/2 lanes/4 lanes Deep Color (color depth): 8-/10-/12-bit compatible Colorimetry: RGB, YCbCr444, YCbCr422, REC709, REC601 Supports HDCP*5
HDBaseT™ / LAN port Video input RJ-45 × 1, 10BASE-T/100BASE-TX Deep Color (color depth): 8-/10-/12-bit compatible Colorimetry: RGB, YCbCr444, YCbCr422, YCbCr420, REC709, REC601 Supports HDCP*5
SDI (3G/HD/SD) Video input BNC × 1 Input signals: SMPTE259M, SMPTE292M, SMPTE424M Colorimetry: RGB, YCbCr444, YCbCr422, REC709, REC601
Video output BNC × 1
Computer Video input Mini D-Sub 15 Pin × 1, BNC × 5
Video output Mini D-Sub 15 Pin × 1
3D Sync In BNC × 1, synchronized signal input for 3D use
1920 × 1200 RB 120 Hz, Frame sequential
Out BNC × 1, synchronized signal output for 3D use
Trigger 1/2 Stereo mini jack × 2
PC control connector D-Sub 9-pin × 1, 9600 bps
Remote connector Stereo mini jack × 1
Usage environment*6 Operating temperature: 41 to 104°F (5 to 40°C)
operating humidity: 0 to 80% (with no condensation)
Storage temperature: 14 to 140°F (–10 to 60°C)
storage humidity: 0 to 80% (with no condensation)
Operating altitude: 0 to 4,200 m
Power requirement 200 – 240 V AC, 50/ 60 Hz
Power consumption Light mode - Boost 1,922 W
Light mode - Normal 1,779 W
Light mode - ECO 1,461 W
Input current 9.7 A
Dimensions ( W× H× D) 20.9" x 9.8" x 29.3" (530 × 248 × 745 mm) not including protruding parts
Weight 112 lbs (51 kg) not including lens



*1: Effective pixels are more than 99.99%.

*2: Time at which the laser light source is at half brightness; not a guaranteed time.

*3: This is the light output value that results from setting [LIGHT MODE] to [NORMAL] and setting [PRESET] to [HIGH-BRIGHT] while using the NP47ZL lens (sold separately). The light output value is lower when setting [LIGHT MODE] to [ECO]. If any other mode is selected as [PRESET] mode, the light output value may drop slightly.

*4: Compliant with ISO21118-2012.

*5: If you are unable to view material via the HDMI, DisplayPort or HDBaseT input, this does not necessarily mean the projector is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/ intention of the HDCP community. (Digital Content Protection, LLC).

*6: Depending on the altitude and temperature, the projector goes into “Forced ECO Mode”.


Optional Lenses

Model NP45ZL NP46ZL NP47ZL
Std Lens
NEC NP45ZL lens NEC NP46ZL lens NEC NP47ZL lens NEC NP48ZL lens NEC NP49ZL lens
0.9 – 1.2 1.2 – 1.56 1.5 – 2.0 2.0 – 4.0 4.0 – 7.0
f/stop 2.2 – 2.53 2.18 – 2.66 2.18 – 2.66 2.18 – 2.66 2.18 – 2.66
