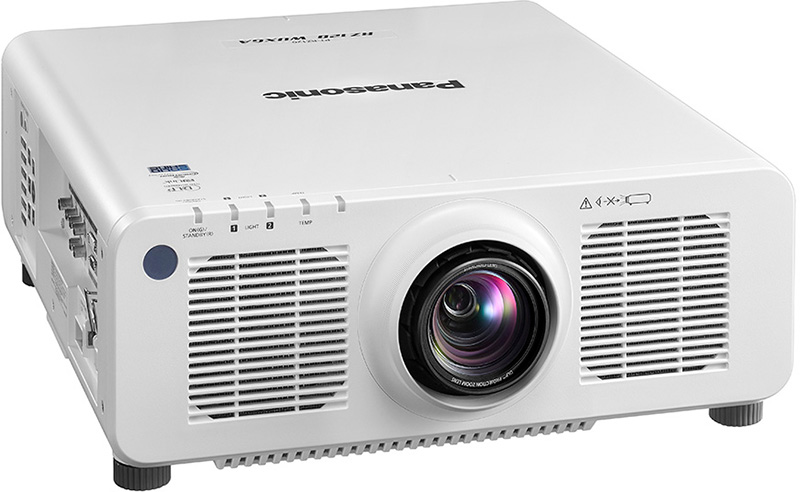

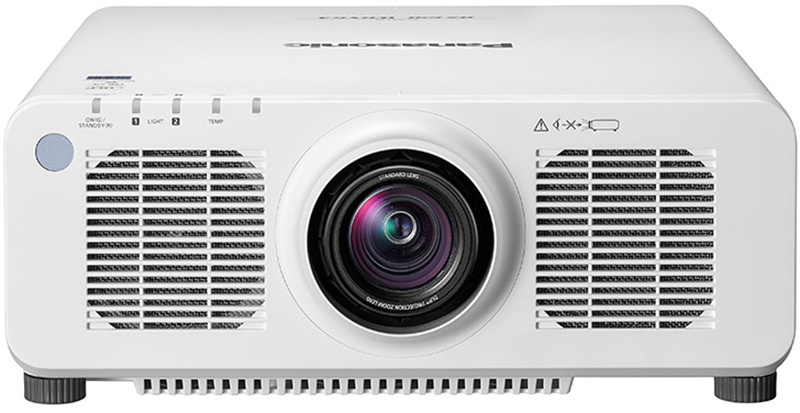

Panasonic PT-RZ120LWU

Laser/Phosphor 1-DLP Projector, 1920x1200 WUXGA, 12,000 Lumens, H&V Lens Shift, SDI, No Lens, White, 3 year warranty
Part #: 0600-7115    Mfr #: PTRZ120LWU

Panasonic PT-RZ120LWU


How the Game-Changing PT-RZ120 Can Revitalize Your Success

The 12,000 lm PT-RZ120 is a first among 1-Chip DLP™ projectors. Further refinements to our high-quality imaging technology and filterless cooling system result in uncommonly high brightness from a compact body. Expect vibrant, high-contrast pictures and consistent color uniformity across multiple screens courtesy 1-Chip DLP™ technology and dual solid-state laser light engines. Hermetically sealed optics contribute to 20,000 hours maintenance-free projection, enhancing installation flexibility in elevated positions such as museums, auditoriums, university halls, and even larger, brighter environments.

[Compare to Similar Projectors]


High-Quality Pictures and Long-Lasting Reliability

  • Combines 1-Chip DLP™ imaging with proprietary SOLID SHINE Laser technology for accurate and immersive pictures at 12,000 lumens
  • Dynamic Contrast realizes high 10,000:1 contrast without losing brightness
  • Detail Clarity Processor 3 clarifies and enhances the finest details
  • System Daylight View 3 optimization for sharp and vivid images in bright environments

Consistently Stable and Reliable Performance

  • Dust-resistant projector structure with airtight optical block
  • Dual-drive laser optical engine with dual phosphor wheels assures reliable 24/7 operation with light-source failover protection
  • Up to 20,000 hours of continuous maintenance-free operation
  • Efficient cooling system for stable operation in ambient temperatures of up to 113 °F (45 °C)
  • Seamless backup signal input switching if primary signal transmission is interrupted

Versatile System Adaptability and Flexible Installation

  • Shares optional lenses with Panasonic 1-Chip DLP™ projector family
  • Compact body and free 360-degree installation (vertical and horizontal)
  • DIGITAL LINK / HDMI® support transmission of 4K signals
  • Built-in Geometric Adjustment for projection onto specially-shaped screens
  • Supports Geometry Manager Pro and optional Upgrade Kit (ET-UK20)
  • Data-cloning function copies configuration data from master projector to slave projectors via LAN, saving time and labor


Model ET-DLE035 ET-DLE055 ET-DLE085 ET-DLE150 ET-DLE170 ET-DLE250 ET-DLE350 ET-DLE450
D:W 0.38:1 0.80:1 0.79 - 0.99:1 1.31 - 1.90:1 1.74 - 2.39:1 2.30 - 3.64:1 3.61 - 5.48:1 5.44 - 8.66:1
f/stop 2.0 1.75 1.85 - 2.20 1.84 - 2.44 1.7 - 1.9 1.83 - 2.27 1.82 - 2.24 1.83 - 2.35
