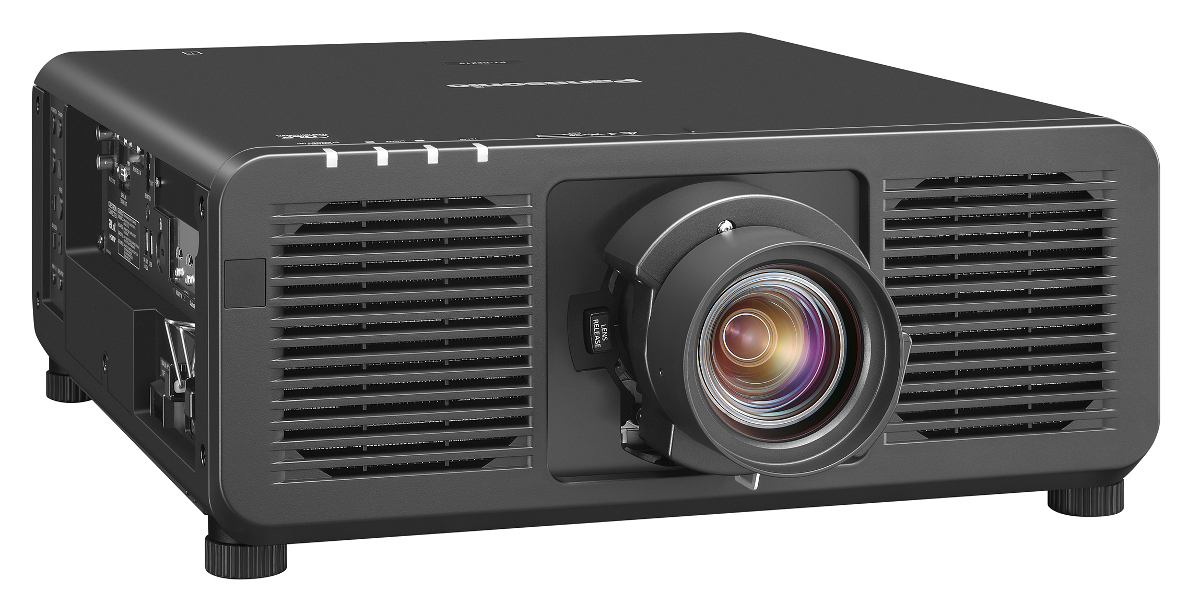

Panasonic PT-REZ15BU7

Laser 1-DLP Projector, WUXGA, 15K Lumens, Std Lens, Black, 3-Year Warranty
Item #0600-7304 Model #PTREZ15BU7

Overview

Panasonic PT-REZ15BU7

WUXGA 1-Chip DLP™ Laser Projector with 15K Lumens (standard lens)

The Panasonic PT-REZ15BU7 expands functionality, interfaces, and options for a smoother workflow. It suits new optional lenses featuring powered center and periphery focus and has an Intel® SDM-ready slot. The optimized optical engine enables projection at 15,000 lumens on AC 100–240 V power for efficient installation without needing electrical construction.

Rich Color Enhancer ensures accurate red for artwork, while Evolved Dynamic Contrast boosts image realism dramatically. Black-level settings offer precision point-based border adjustment for arbitrary screen shapes.

The PT-REZ15BU7 features an optical engine and laser light source module compliant with the IP5X Dust Protected (IEC 60529) standard and a refined liquid cooling system. This technology enables up to 20,000 hours of continuous maintenance-free projection. Backup Input and Multi Laser Drive Engine further enhance reliability and insure against interruptions.

Note: Standard lens (ET-C1S600) included. For a model without a lens, see the PT-REZ15LBU7.

Features

Spectacular Visuals on a Grand Scale

  • Rich Color Enhancer ensures accurate red for artwork.
  • Evolved Dynamic Contrast boosts image realism dramatically.
  • Black-level settings offer precision point-based border adjustment for arbitrary screen shapes.

Effortless Workflow and Expanded Capabilities

  • New optional lenses feature powered center and periphery focus8
  • Intel® SDM-ready slot
  • Optimized optical engine enables projection at 15,000 lumens on AC 100–240 V power
  • User test-pattern registration9
  • NFC function10 for setup prep without AC power
  • Pre-activated upgrade kits for Geo Pro11

Supremely Reliable Maintenance-Free Operation

  • Optical engine and laser light source module compliant with the IP5X Dust Protected (IEC 60529) standard12
  • Refined liquid cooling system
  • Up to 20,000 hours13 of continuous maintenance-free projection
  • Backup Input14 and Multi Laser Drive Engine

Notes

1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
4 Only when the optional TY-SB01DL DIGITAL LINK Terminal Board is loaded.
5 Input signals to the PT-REZ15 are converted to the projector’s display resolution upon playback. YPBPR 4:2:0 format only for 4K/60p signals input via DIGITAL LINK.
8 Lens release date varies depending on the model. Powered periphery focus adjustment is not supported on the ET-C1S600 and ET-C1T700 lenses.
9 Supports PNG (1/8/16/24/32/48/64-bit, non-transparent, alpha blending disabled) and BMP (1/8/24-bit) formats with a maximum resolution of 1920 x 1200 dots.
10 Projectors sold in some countries or regions require an ET-NUK10 Upgrade Kit available from PASS to activate the NFC function.
11 Visit PASS to register your projector and download free Geometry Manager Pro software for Windows® (upgrade kits included).
12 The dust-proof performance of this unit is not guaranteed to be free from damage or failure under all conditions (environment with conductive dust, etc.). Please use an enclosure in environments with smoke containing oil, salt, and moisture.
13 Around this time, the light output will have decreased by approximately 50 %. IEC62087:2008 Broadcast Contents, NORMAL Mode, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Panasonic recommends a checkup at the point of purchase after about 20,000 hours. Light-source lifetime may be reduced depending on environmental conditions. Replacement of parts other than the light source may be required in a shorter period. Estimated maintenance time varies depending on the environment.
14 Terminal assignment is fixed. Input signals to primary and backup inputs must be identical.

Specifications

Projector type 1-Chip DLP™ projector
DLP™ CHIP
   Panel size 0.8 inch diagonal (16:10 aspect ratio)
   Display method DLP™ chip x 1, DLP™ projection system
   Number of pixels 2,304,000 (1920 x 1200 pixels)
Light source Laser diode
Light output1,2 15,000 lumens
Time until light output declines to 50 %3 20,000 hours (NORMAL/QUIET), 24,000 hours (ECO)
Resolution WUXGA (1920 x 1200 pixels)
Contrast ratio1 25,000:1 (Full On/Full Off, Dynamic Contrast [3])
Screen size (diagonal) 70–700 inches (with supplied lens)
Center-to-corner zone ratio1 90 %
Lens Powered zoom and focus; throw ratio 1.36–2.10:1, F/stop 1.842.31 for supplied lens.
(See Accessories tab for other lenses.)
LENS SHIFT
(From the origin point of the lens mounter)

   Vertical ±60 % (with ET-C1W400/W500/S600/T700), ±50 % (with ET-C1W300/U100)
   Horizontal ±29 % (with ET-C1W400/W500/S600/T700), ±23 % (with ET-C1W300/U100)
Keystone correction range Vertical: ±40 ° (±5 ° with ET-C1U100; ±10 ° with ET-C1W300; ±16 ° with ET-C1W400; ±22 ° with ET-C1W500)
Horizontal: ±40 ° (±3 ° with ET-C1U100; ±5 ° with ET-C1W300; ±10 ° with ET-C1W400; ±15 ° with ET-C1W500)
Installation Ceiling/floor, front/rear, free 360-degree installation
TERMINALS
   HDMI™ 1/2 IN HDMI™ x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input4)
   DisplayPort™ DisplayPort™ x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input4)
   MULTI SYNC IN BNC x 1
   MULTI SYNC OUT BNC x 1
   SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
   SERIAL OUT D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
   REMOTE 1 IN M3 stereo mini-jack x 1 for wired remote control
   REMOTE 1 OUT M3 stereo mini-jack x 1 for link control (for wired remote control)
   REMOTE 2 IN D-sub 9-pin (female) x 1 for external control (parallel)
   LAN RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
   USB USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory
   DC OUT USB Type A x 1 (for power supply, DC 5 V, 2 A)
   Expansion slot Open slot for function boards, Intel® SDM compatible
Protocol versions IPv4, IPv65
Power supply AC 100–240 V, 50/60 Hz
POWER CONSUMPTION6
   Maximum power       consumption 1,090 W (11.5–4.7 A) (1,100 VA)
(Power consumption is 1,040 W at AC 200–240 V)
   On-mode power     consumption
 (Operating mode)
[NORMAL]  945 W (AC 100–120 V)
                 900 W (AC 200–240 V)
[ECO]        730 W (AC 100–120 V)
                 700 W (AC 200–240 V)
[QUIET]     725 W (AC 100–120 V)
                 695 W (AC 200–240 V)
Operation noise1 42 dB (NORMAL/ECO), 38 dB (QUIET)
Dimensions
(W x H x D)
19 19/32" x 8 11/32" x 25 1/2" (498 x 212 x 648 mm) with feet at shortest position
Weight7 Approx. 63.27 lb (28.7 kg) (with supplied lens)
Operating environment Operating temperature: 0–45 °C (32–113 °F8), operating humidity: 10–80 % (no condensation)
Applicable software Multi Monitoring & Control Software, Projector Network Setup Software, Early Warning Software, Geometry Manager Pro,Smart Projector Control for iOS/Android™
Control function
via LAN
Crestron Connected™ V2, Crestron XiO Cloud™, Art-Net DMX, AMX® DD, and PJLink™ (Class 2)
Notes:

1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.

2 When [PICTURE MODE] is set to [DYNAMIC] and [OPERATING MODE] is set to [NORMAL].

3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast Contents, Dynamic Contrast [3], temperature 30 °C (86 °F), elevation 700 m (2,297 ft) with 0.15 mg/m3 of airborne particulate matter. Estimated time until light output declines to 50 % varies depending on environment.

4 4K signals are converted to WUXGA (1920 x 1200 pixels).

5 Optional AJ-WM50 Series Wireless Module is not compatible with IPv6.

6 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft).

7 Average value. May differ depending on the actual unit.

8 When optional AJ-WM50 Series wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F). The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).

Accessories

Optional Lenses

Model ET-C1U1001 ET-C1W300* ET-C1W4002 ET-C1W500* ET-C1S600*
Std Lens
ET-C1T700*

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Add to Cart
ET-C1U100 lens ET-C1W300 lens ET-C1W400 lens ET-C1W500 lens ET-C1S600 lens ET-C1T700 lens
D:W (16:10)
0.3080.330:1 0.5500.690:1 0.680–0.950:1 0.940–1.39:1 1.36–2.10:1 2.07–3.38:1
f/stop 2.13 1.942.28 1.942.39 1.842.34 1.842.31 1.942.38
