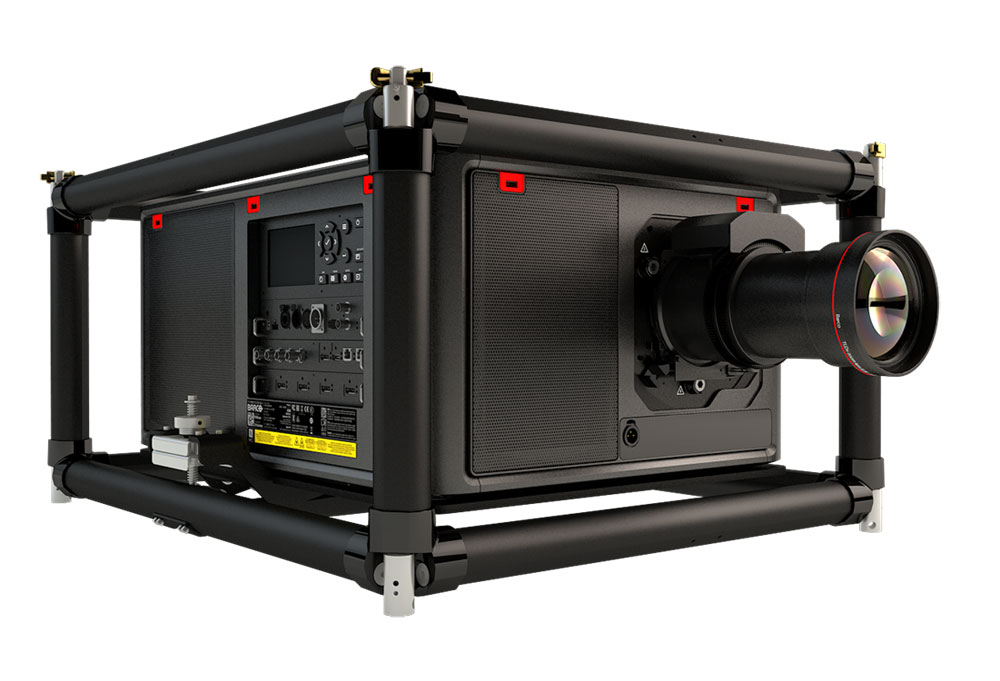

Barco UDM-4K22

Laser 3-DLP Projector, 4K UHD 2560x1600 native, 19,000 ANSI Lumens, Choice of Lens (except Ultra-Short), 3 Year Warranty
Item #0601-1426 Model #R9009049B1


20,000 lumens, 4K UHD, 3-chip DLP large venue projector

  • Lightest 20K laser projector in the market
  • High residual value thanks to rugged design
  • Remote fleet management and connectivity with Barco Insights
  • Unified Pulse electronics with Single Step Processing

While the compact and light-weight design of the UDM-4K22 saves you lots of installation time and reduces shipping and labor costs, it never compromises on the quality or brightness of your projection. The UDM-4K22 features 4K UHD resolution and 20,000 lumens light output to deliver impactful experiences with mind-blowing colors. The UDM projector offers the widest color spectrum for 20K laser phosphor projection on the market outperforming the Rec. 709 color space.

Operational efficiency

Lift your creativity to unprecedented levels with the widest lens shift on the market and an extensive list of other peripherals which will facilitate a smooth installation and integration of the projector in your setup. Barco’s unique FLEX2 feature allows you to tune and lock the brightness level or resolution for a specific show. The modular design supports fast maintenance and easy serviceability in the field.

Pulse Electronics

With the Barco Pulse proprietary Single Step Processing technology warping, scaling and 4K UHD processing is done in only one step. The result? Razor-sharp images, market leading lowest latency, and less dark time than comparable solutions.


The Insights Dashboard and remote log file access enables faster and more effective troubleshooting. Manage the brightness settings of your projector fleet and keep track of operating conditions anywhere and anytime through a secured cloud-based platform and integrated 3G connectivity.

Long lifetime

Thanks to its robustness and the smart material choices, you can trust UDM to withstand the endurances of life on the road. With the laser phosphor light source, lamp-related costs and maintenance as well as image flicker, belong to the past. Barco’s outstanding integrated laser cooling prevents overheating and the Constant Light Output functionality guarantees constant brightness and color across the projector's lifetime.

Key Features:

  • 3 chip DLP
  • laser phosphor projection
  • WUXGA resolution
  • 20K lumens
  • 3D ready
  • constant light output
  • 4K Pulse backbone and standardized user interface
  • rugged & compact
  • 24-7 operation
  • HDBaseT compliant
  • warping & blending



Projector type 4K UHD 3-chip DLP digital projector
Technology 0.9" DMD™ x3
Resolution 3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (native) / 5,120 x 3,200 (processing)

20,000 (4K UHD) center lumens / 19,000 (4K UHD) ansi lumens *
22,000 ISO lumens *

Contrast ratio 2000:1
Brightness uniformity 95%
Aspect ratio 16:10
ScenergiX horizontal and vertical edge blending
Lens range 9 optional TLD+ lenses with throw ratios from 0.43:1 to 11:1 (See Accessories tab.)
Includes TLD+ lens of your choice (except R9801661 and R9862001)
Optical lens shift Vertical between -100% to +130%, depending on lens
Horizontal up to ±40%, depending on lens
Motorized zoom and focus (with lens memory on TLD lenses)
Motorized lens shift (with position memory on all lenses)
Color correction P7
Optical dowser  Digital
Light source Laser phosphor with inorganic phosphor wheel
Light source lifetime >20,000 hrs
Picture-by-picture  Two sources simultaneously
Sealed DLP™ core Standard
Orientation 360°
DMX 512 Standard

Direct adjust OSD + toolset

Image processing Embedded warp & blend
Processing Pulse Electronics
CLO (constant light output) Standard
3D Active eye wear (optional), passive circular (optional); 2 flash up to 200 Hz;

optional Dual Eye Point 240 Hz

Keystone correction


Integrated Web Server



Single HDBaseT; HDMI2.0 (HDCP2.2, HDR10); DP 1.2 (HDCP1.3); Quad 3G/12G SDI/BarcoLink ULTRA

Optional Inputs

Quad DP1.2, Fiber SFP

Input resolutions

From NTSC up to 4K (4,096 x 2,160)

Refresh rates: 24 Hz to 120 Hz 4K/4KUHD (4096 x 2160/ 3860 x 2400) to 240 Hz WQXGA (2560 x 1600)

Max. pixel clock 600 MHz
Software tools Projector Toolset + Android** app + iOS** app
Control XLR wired + IR, RS232, Wifi**, GSM**
24/7 operation Yes
Network connection 10/100 base-T, RJ-45 connection, Wifi**
Power requirements

120-160 V (reduced power) 18.5A / 200-240V (±10%), 13.5A, 50-60 Hz

Max. power consumption

1800W nom/ 2200W max @ 230 volts ECO STBY
1300W nom/ 1530W max @ 120 volts ECO STBY

Noise level

(typical at 25°C/77°F)

48 dB(A) ****

Operational/ambient temperature 0-40°C / 32°-104°F ***
Operational humidity 0-80% (non condens)

Dissipation BTU

Max. 6,890 BTU/h

Dimensions (WxLxH)

725 x 540x 339 mm / 28.54 x 21.26 x 13.3 inches

Shipping Dimensions incl. pallet (WxLxH)

850 x 665 x 613 mm / 33.46 x 26.18 x 24.13 inches


48 kg (105 lbs)
shipping weight from factory: 61 kg (134.5 lbs)

Standard accessories Power cord, wireless / XLR wired rugged remote control


Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs

Warranty 3 years


* Brightness levels ±10%

** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.

*** At higher altitude light output might be dimmed

**** From Q1 2021 onwards
