Panasonic PT-MZ670LBU

LCD Laser Projector, 1920x1200 WUXGA, 6500 Lumens, H&V Lens Shift, No Lens, Black Case, 3 year warranty
Part #: 0600-7109    Mfr #: PTMZ670LBU

Panasonic PT-MZ670LBU

Overview

Award banner for PT-MZ670LBU

PT-MZ670LBU

Hits all targets for bright and efficient installation projection

The PT-MZ670LBU is a 6,500-lumen high-brightness projector that enable clear and vivid large-screen projection in bright environments. It combines, for the first time, Panasonic’s time-proven LCD with industry-leading SOLID SHINE Laser light-source technology to achieve consistent high-quality pictures and extremely stable performance.

Presenters get the best in crisp and punchy picture quality; students are undistracted by noise; and administrators reduce costs with set-and-forget low-maintenance design. Flexible installation in corporate or educational facilities is complemented by an efficient Eco Filter, which helps to extend maintenance to about 20,000 hours*1.

Key Features:

  • Brilliant Picture Quality
  • Low Maintenance with ECO Functions
  • Excellent System Flexibility
  • Loaded with High-Value Features

[Compare to Similar Projectors]

Note:

*1 Under conditions with 0.15 mg/m3 of particulate matter (based on tests by the American Society of Heating, Refrigerating, and Air-Conditioning Engineers [ASHRAE], and the Japanese Building Maintenance Association). Estimated maintenance time varies depending on environment.

Features

Brilliant Picture Quality

Vivid Images in Bright Environments

SOLID SHINE Laser phosphor drive with advanced 3LCD optical engine projects bright, vivid, and detailed pictures even in rooms with high levels of artificial light. Text is reproduced clearly and legibly, while graphics and video retain excellent color saturation and high contrast.

Dynamic Contrast of 3,000,000:1* for Natural Image Expression

Precision laser power output modulation achieves high contrast with low power consumption, enabling superior expression of light and dark scenes for a natural, comfortable viewing experience. The PT-MZ670 Series features high 3,000,000:1* dynamic contrast.

* With image mode set to “Dynamic” and Dynamic Contrast set to 1 or 2.

Daylight View Basic Optimizes Pictures in Bright Spaces

Daylight View Basic delivers clear and sharp images by enhancing detail, particularly in dark areas of the image, that are difficult to see in brightly lit rooms. A sensor measures ambient light while Daylight View Basic adjusts halftone color and brightness to suit surrounding illumination.

Detail Clarity Processor 4 Provides Pin-Sharp Insight

Proprietary circuitry analyzes individual video frames to clarify areas of each image containing fine details. Algorithms pull information from four frequency bands of the signal, sharpening outlines, correcting contours, and reducing ringing noise for a vastly superior picture.

Color Adjustment Function

Color Adjustment makes it easy to correct slight variations in the color reproduction range of individual units set up for multiple projection, particularly those in side-by-side configuration. Correction is performed on 3 or 7 colors.

Low Maintenance with ECO Functions

No Light-Source Replacement for 20,000 hours*

Laser light-source lifespan is extended to 20,000 hours*, cutting running costs, labor, and wastage in comparison to lamp-based projectors. By reducing use of consumable parts, organizations can also streamline spare-part inventories.

* Around this time, original light source brightness will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, Dynamic contrast [2], Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.

Dust-Resistant Cabinet with One-Way Airflow Design

Dust-resistant cabinet has an unobstructed one-way airflow with improved hermetic sealing around the filter module and air-intake duct. Better lens-assembly hermeticity reduces dust intrusion and extends picture brightness.

Reusable ECO Filter Replacement Extended to 20,000 Hours*1

Eco Filter includes a Micro Cut Filter that collects minute dust particles with an electrostatic effect. Together with dust-resistant projector cabinet, Eco Filter enables long-term use in dusty conditions with less downtime. Replacement is at about 20,000 hours*1, and the filter can be washed and reused*2.

*1 Under conditions of 0.15 mg/m3 of particulate matter. Estimated maintenance time varies depending on environment.

*2 Please follow the procedures listed in the operating instructions when washing filter with water. Replacement is recommended after filter has been washed and reused twice, or if filter is not sufficiently clean after washing.

ECO Management System with Intelligent Light-Source Control

Energy efficiency is achieved by automatically reducing light-source output power in dim rooms, and by transitioning to a low-power mode when no signal is detected.

Excellent System Flexibility

Single-Cable DIGITAL LINK Connection for AV and Control Signals

Based on HDBaseT™ technology, DIGITAL LINK supports transmission of Full HD video, audio*1, and control commands through a single CAT 5e or higher STP cable for distances of 150 m*2 (492 ft). An optional DIGITAL LINK Switcher or Digital Interface Box further streamlines installation in large venues.

*1 Audio transmission depends on model’s audio capability.

*2 150 m (492 ft) transmission available with ET-YFB200G DIGITAL LINK Switcher for signals up to 1080p in Long Reach Mode only.

Powered Lens Shift, Zoom, and Focus

Wide adjustment range of the powered horizontal/vertical lens-shift function enhances convenience and versatility during installation. Zoom and focusing are also easily performed with the supplied remote control.

Auto Image Rotation

Images are automatically* rotated depending on projector orientation— upside-down on the ceiling or set on a table—using a built-in angle sensor.

* Manual setting also available via setup menu.

Quiet Operation

The quiet design keeps noise levels down to a low 26 dB* in Quiet Mode with the cooling fan hardly audible, minimizing distractions during presentations.

* When in Quiet Mode, brightness decreases to 70% of maximum.

Project Wirelessly with Optional Module

An optional ET-WM300 wireless module supports media projection from Windows® and Mac PCs, iOS devices, and Android™ devices with an appropriate app installed. Whether projecting from desk or ceiling, there’s no need for cables, and a variety of file formats are supported.

Plug and Share

Insert a USB memory device into the projector’s USB terminal. In less than a minute, configuration setting files and an application are copied. Plug the USB memory device into your PC, click the player icon, and transmit video and stills wirelessly to the projector—no software or network setup required. See Downloads tab for link to download software.

Free 360-degree Installation

SOLID SHINE Laser technology enables free 360-degree installation through any axis. Together with powered lens shift and a wide range of optional lenses, the projector can be mounted in any way desired without picture distortion temporarily or in permanent applications.

Loaded with High-Value Features

Multi Monitoring & Control Software

Panasonic Multi Monitoring & Control Software supports up to 2,048 devices over LAN and features system map visualization or auto-search of devices to be registered. The free software is available with Early Warning functions (automatic free 90-day trial available). These advanced functions enable real-time monitoring, abnormality detection, and notification before servicing is required. Administrators can achieve seamless control and real-time monitoring while preventing potential problems, saving time, and enhancing system reliability.

Quick Start and Quick Off

The laser light source doesn’t require any time to warm up, so images appear almost instantly on projectors with Quick Start/Quick Off function. There’s also no cool-down needed when turning the power off. It’s safe to switch the projector on and off any time desired.

Fade In and Fade Out

Another benefit of digital laser output power modulation technology is a handy Fade In/Fade Out function, which allows users to commence or conclude their presentation to professional effect.

Additional Features

  • Screen Adjustment for Specially Shaped Screens
  • Data-cloning Function
  • Art-Net DMX, Crestron Connected™, and PJLink™
  • DICOM Simulation Mode
  • Memory Viewer
  • Direct Power Off
  • Audio Standby Mode
  • Scheduling Function
  • Presentation Support Function
  • Supports Panasonic LinkRay

Specifications

Power supply 100–240 V AC, 50/60 Hz
Power consumption 525 W
LCD PANEL
  Panel size 19.3 mm (0.76˝ ) diagonal (16:10 aspect ratio)
  Display method Transparent LCD panel (× 3, R/G/B)
  Drive method Active matrix
  Pixels 2,304,000 (1920 × 1200) × 3, total of 6,912,000 pixels
Lens Optional powered zoom/focus lenses (see the Lenses tab)
Light source Laser diode (Class 1) (Class 3R for US models)
Filter x 1, estimated maintenance time: approx. 20,000 hours*1
Screen size (diagonal) 1.02–10.16 m (40–400 in), 16:10 aspect ratio
1.52–10.16 m (60–400 in) with the ET-ELW22, 16:10 aspect ratio
Brightness*2 6,500 lm
Center-to-corner uniformity*2 90 %
Contrast 3,000,000:1 (Dynamic Mode/Dynamic Contrast 1/2)
Resolution 1920 × 1200 pixels*3  (WUXGA)
OPTICAL AXIS SHIFT*4*5
(from center of screen)

  Vertical ±67 % (powered) for standard lens
  Horizontal ±35 % (powered) for standard lens
Keystone correction range*4 Vertical: ±25°, Horizontal: ±30° (for standard lens)
Installation Horizontal/Vertical, free 360-degree installation
Built-in speaker 10 W (monaural)
Cabinet materials Molded plastic (PC + ABS)
Dimensions (W x H x D) 560 x 205*6 x 428 mm (22 1/16" x 8 1/16" *6 x 16 27/32" ) (without lens)
Weight*7 Approximately 16.1 kg (35.5 lbs) (without lens)
Operating noise*2 32 dB (Normal/ECO Mode), 26 dB (Quiet Mode)
Operating environment Operating temperature: 0 °C–45 °C (32 °F–113 °F)*8, operating humidity: 20 %–80 % (no condensation)
Applicable software/application Logo Transfer Software, Multi Monitoring & Control Software, Wireless Manager ME, Plug and Share, Smart Projector Control App, Wireless Projector App
Supplied accessories Power cord with power cord holder*9, wireless/wired remote control unit × 1, batteries (R03/LR03/AAA type × 2), CD-ROM × 1 (operation manual)

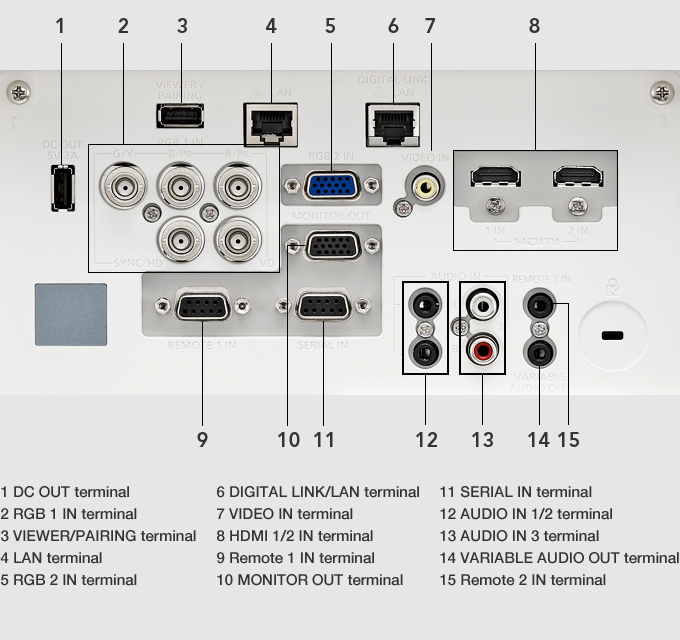

Terminals PT-MZ670 terminals
Warranty 3 Years Parts & Labor; 10,000 Hours on Illumination Parts

Notes:

*1 Under conditions with 0.15 mg/m3 of particulate matter (based on tests by the American Society of Heating, Refrigerating, and Air-Conditioning Engineers [ASHRAE], and the Japanese Building Maintenance Association). Estimated maintenance time varies depending on environment.

*2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.

*3 Input signals that differ from supported resolution will be converted.

*4 Values vary depending on lens used. Please refer to Spec File or Operating Instructions on Downloads tab.

*5 Optical axis shift is not supported on the ET-ELW21.

*6 With legs at shortest position.

*7 Average value. May differ depending on models.

*8 Brightness is limited at operating temperatures higher than 36 °C (96 °F), and projectors cannot be operated at altitudes higher than 2,700 m (8,858 ft) above sea level.

*9 Power cords available (x2) for Europe, the UK, and Asia only.

Lenses


Model ET-ELW21 ET-ELW22 ET-ELW20

ET-ELS20
Standard Lens

ET-ELT22 ET-ELT21
Price $1,549.00
Add to Cart
$2,799.00
Price
$1,499.00
Add to Cart
$475.00
Add to Cart

Add to Cart

  etelw21 etelw22  etelw20 Standard Lens ET-ELT20 ET-ELT21

D:W
WUXGA

0.8:1  0.78 – 0.98:1 1.3  1.7:1 1.7  2.8:1 2.8  4.6:1 4.6  7.2:1
f/stop  2.0 2.0  2.4  1.8  2.3 1.7  2.3 1.8  2.3 1.8  2.3

Accessories

ceiling mounts for PT-MZ670LBU Ceiling mounts
ET-RFM100 Replacement Filter Replacement filter unit
ET-YFB100G Digital Interface Box Digital interface box (switcher) $950.00
Add to Cart
ET-UW100 WIreless module Wireless module (plugs into computer) $100.00
Add to Cart

Wireless Module Unit

Wireless module unit (plugs into projector)
