Panasonic PT-RQ50KU
Overview
Panasonic PT-RQ50KU
Revolutionizing the visual experience with 50,000 lumens brightness, native 4K resolution, and vivid color
The PT-RQ50K represents a milestone in projection technology. Serving flawless Native 4K (4096 x 2160) images with a laser engine that combines one red laser and two blue lasers operating at different wavelengths, light output is doubled from the same footprint as our 26,000 lm PT-RQ32K 4K projector. Deployed at sporting events, arena concerts, outdoor mapping attractions, or museum exhibitions, the PT-RQ50K’s refined power will exceed the highest expectations.
Key Features:
- 50,000 lumens, native 4K color-rich images for a breathtaking viewing xxperience
- Versatile all-in-one design streamlines on-site workflow
- Original cooling system secures projection stability
(Lens is sold separately.)
Features
50,000 lumens*1 Native 4K Color-Rich Images for a Breathtaking Viewing Experience
-
Awe-inspiring color, brightness, and resolution
- All-new laser engine expands color-gamut to 114 % of current PT-RQ32K flagship, achieving lush, vibrant hues
Versatile All-in-One Design Streamlines On-Site Workflow
-
Compact all-in-one Body with built-in cooling
-
Remote Preview saves time and unnecessary stress
-
Built-in Upgrade Kits for Geo Pro Software now pre-activated
-
Geometric Adjustment with Free Grid correction via remote control
-
Remote app with NFC (Near Field communication) function*2 and projector auto-focus via smartphone camera
-
New information monitor on side panel
-
Dual power supplies save time during setup (Japan/U.S. only)
- New lineup of optional lenses provides gapless throw-ratio coverage from 1.11–1.70:1 to 4.97–7.76:1, adapting projections to suit the installation site.

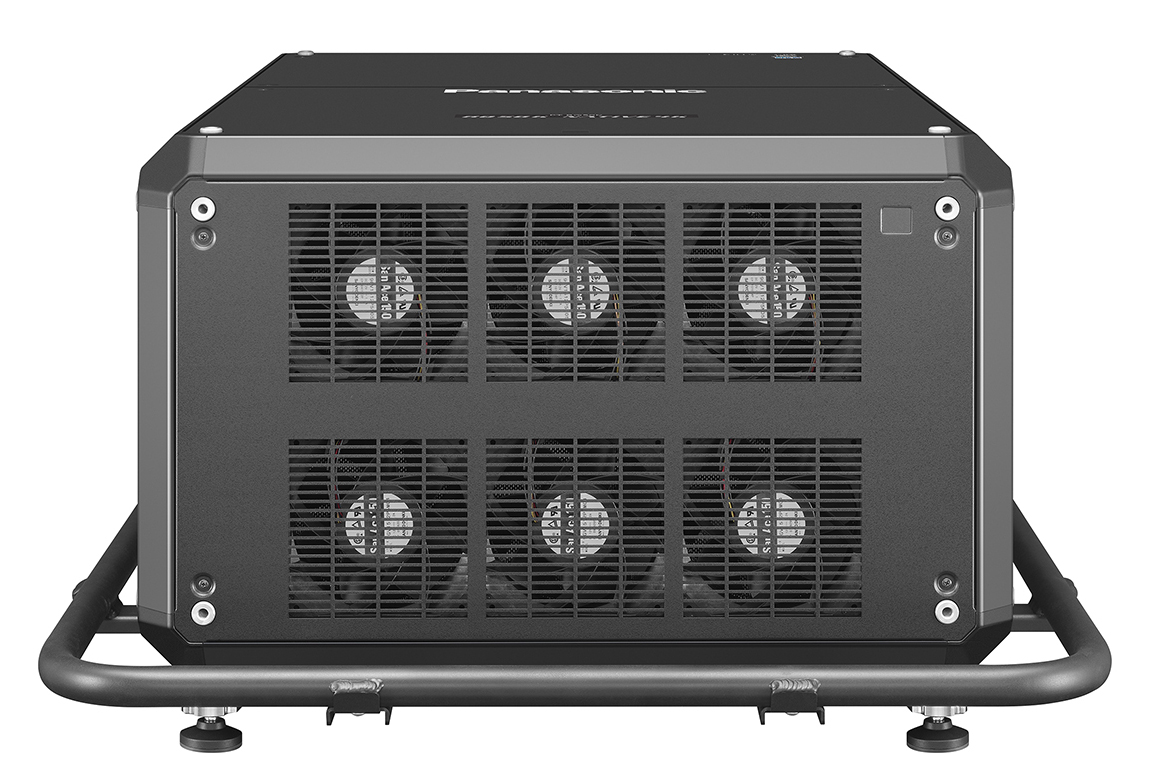

Original Cooling System Secures Projection Stability
-
Reliable red-laser performance for intense color
-
Shielded laser drive with finless radiator improves cooling efficiency by as much as 30 % over previous implementations, while protecting critical components from dust intrusion.
-
Solid-state laser modules with failover circuitry
-
Backup input guarantees picture display
Notes:
*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*2 Availability may vary by country or region.
Specifications
| Projector type | 3-Chip DLP™ projector |
|---|---|
| DLP™ CHIP | |
| Panel size | 35.1 mm (1.38 in) diagonal (17:9 aspect ratio) |
| Display method | DLP™ chip x 3, DLP™ projection system |
| Number of pixels | 8,847,360 (4096 x 2160 pixels) x 3 |
| Light source | Laser diodes (Blue LD, Red LD) |
| Light output | 50,000 lm*1 / 51,000 lm (Center)*2 |
| Time until light output declines to 50 %*3 | 20,000 hours (NORMAL) |
| Resolution | Native 4K (4096 x 2160 pixels) |
| Contrast ratio*1 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Screen size (diagonal) | 2.54–38.1 m (100–1,500 in) with new optional lens for PT-RQ50K, 17:9 aspect ratio |
| Center-to-corner zone ratio*1 | 90 % |
| Lens | New optional lenses for PT-RQ50K (no lens included with this model) |
| LENS SHIFT | |
| Vertical (from center of screen) |
±45 % (±25 % with ET-D3QT600, ±30 % with ET-D3QT700/ET-D3QT800, ±40 % with ET-D3QW300) (powered) |
| Horizontal (from center of screen) |
±16 % (±8 % with ET-D3QT600, ±10 % with ET-D3QT700/ET-D3QT800, ±14 % with ET-D3QW300) (powered) |
| Keystone correction range | Vertical: ±40 ° (±28 ° with ET-D3QW300), Horizontal: ±40 ° (±15 ° with ET-D3QW300) |
| Installation | Horizontal/vertical, free 360-degree installation |
| TERMINALS | |
| MULTI PROJECTOR SYNC IN | BNC x 1 |
| MULTI PROJECTOR SYNC OUT | BNC x 1 |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
| SERIAL OUT | D-sub 9-pin (male) x 1 for link control (RS-232C compliant) |
| REMOTE 1 IN | M3 stereo mini-jack x 1 for wired remote control |
| REMOTE 1 OUT | M3 stereo mini-jack x 1 for link control |
| REMOTE 2 IN | D-sub 9-pin (female) x 1 for external control (parallel) |
| DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible |
| LAN | RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible |
| DC OUT | USB Connector (Type A) x 2 for power supply only (DC 5 V, total of 2 A) |
| USB | USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series) / USB Memory Stick |
| Expansion Slot 1 | Interface Board for 12G-SDI (ET-MDN12G10) supplied |
| Expansion Slot 2 | Optional interface boards, SLOT NX compatible |
| Power supply | AC 200–240 V, 50/60 Hz; AC 100–120 V, 50/60 Hz |
| Power consumption | 4,100 W (AC 100–120 V: 1,100 W, Standby Mode: 6 W) |
| Cabinet materials | Fabricated metal and molded plastic |
| Operation noise*1 | 52 dB |
| Dimensions (W×H×D) | 720 x 445 x 1,070 mm (28 11/32" x 17 17/32" x 42 1/8" ) excluding handle, adjuster feet, and other protruding parts |
| Weight*4 | Approx. 126 kg (278 lbs) without lens |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*5*6*7, operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Geometry Manager Pro, Smart Projector Control for iOS/Android™ |
| Supplied accessories | Power cord , 12G-SDI Input Board x 1, Lens hole cover x 1 , Wireless/wired remote control unit x 1, Batteries for remote control (AA/R6 type x 2) |
Notes:
*1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
*2 Average light-output value of all shipped products measured at center of screen in NORMAL Mode.
*3 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMAL Mode, Dynamic Contrast [3], under conditions with 35 °C (95 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.
*4 Average value. May differ depending on the actual unit.
*5 The operating environment temperature should be between 0 °C (32 °F) and 40 °C (104 °F) if the projector is used at an altitude between 1,400 m (4,593 ft) and 4,200 m (13,780 ft).
*6 When optional AJ-WM50 wireless module is attached, operating temperature range becomes 0–40 °C (32–104 °F).
*7 When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 30 °C (86 °F) or higher, the light output may be reduced to protect the projector. When using the projector at an altitude between 2,700 m (8,858 ft) and 4,200 m (13,780 ft), and the operating environment temperature becomes 25 °C (77 °F) or higher, the light output may be reduced to protect the projector.
Accessories

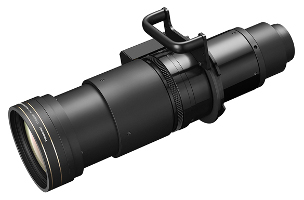

Optional Lenses
D3Q Series
| Model | ET-D3QW200 | ET-D3QW300 | ET-D3QS400 | ET-D3QT500 | ET-D3QT600 | ET-D3QT700 | ET-D3QT800 |
 |
 |
 |
 |
 |
 |
 |
|
| D:W 4K DCI |
0.55–0.65:1 | 1.11–1.70:1 | 1.43–2.09:1 | 2.00–3.41:1 | 2.69–3.88:1 | 3.89–5.47:1 | 4.97–7.76:1 |
| f/stop | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
