Barco UDM-W15-NL

Features

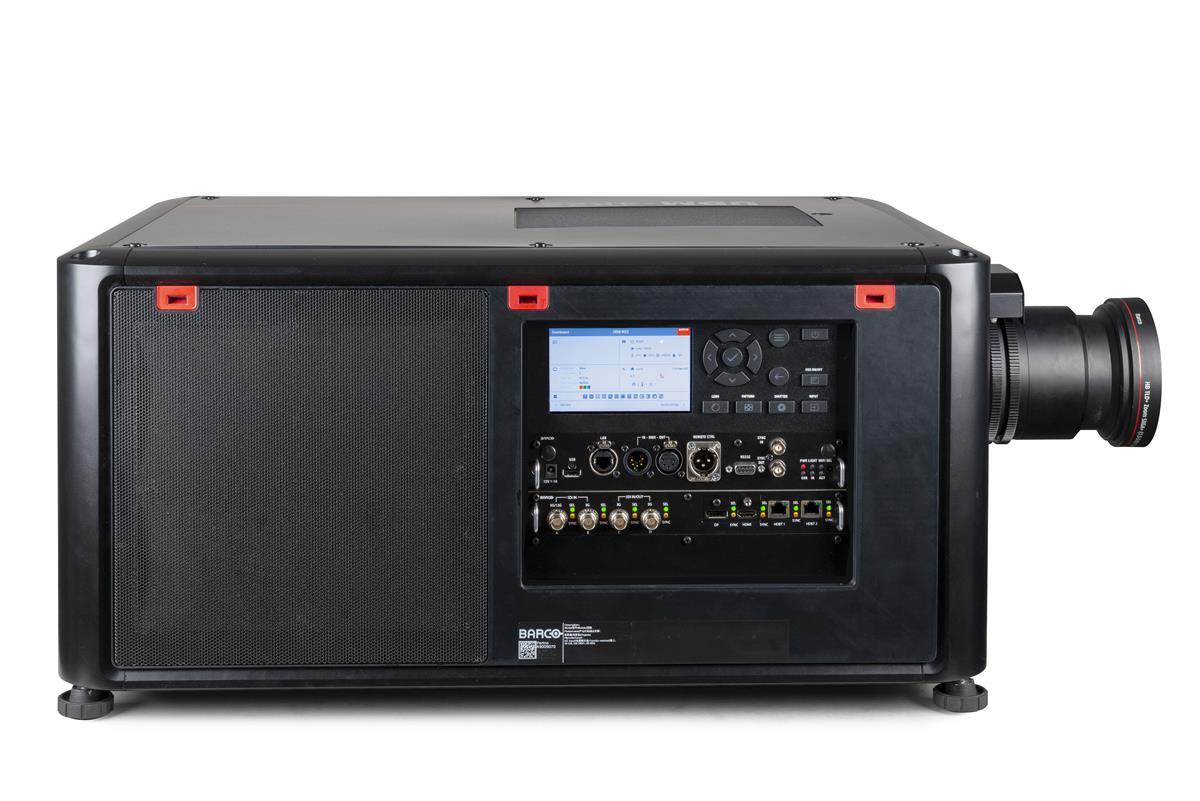

Barco UDM-W15-NL
15,000 lumens, WUXGA, 3-chip DLP digital large venue projector
- Dazzling colors outperforming the Rec. 709 color space
- High residual value thanks to rugged design
- Remote fleet management and connectivity with Barco Insights
- Unified Pulse electronics with Single Step Processing
Just like the 22K version, the UDM-15K never compromises on the quality or brightness of your projection. The UDM-W15-NL features WUXGA resolution and 15,000 lumens light output to deliver impactful experiences with mind-blowing colors.
Operational efficiency
Lift your creativity to unprecedented levels with the widest lens shift on the market and an extensive list of other peripherals which will facilitate a smooth installation and integration of the projector in your setup. Barco’s unique FLEX feature allows you to tune and lock the brightness level or resolution for a specific show. The modular design supports fast maintenance and easy serviceability in the field.
Pulse Electronics
With the Barco Pulse proprietary Single Step Processing technology warping, scaling and 4K UHD processing is done in only one step. The result? Razor-sharp images, market leading lowest latency, and less dark time than comparable solutions.
Connectivity
The Insights dashboard and remote log file access enable faster and more effective troubleshooting. Manage the brightness settings of your projector fleet and keep track of operating conditions anywhere and anytime through a secured cloud-based platform and integrated 3G connectivity.
Long lifetime

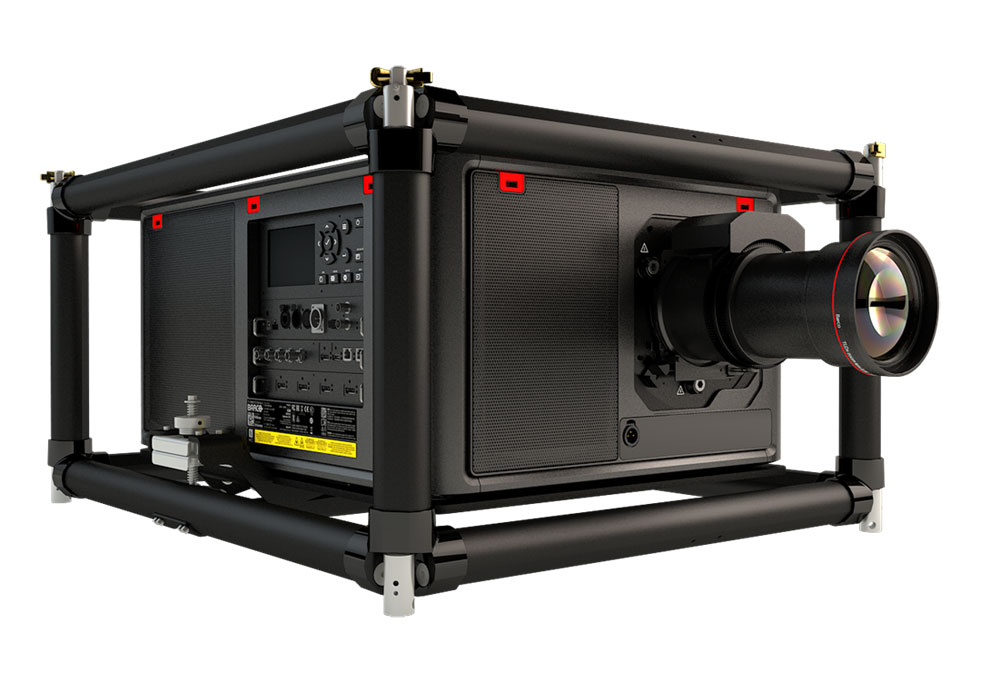

Thanks to its robustness and the smart material choices, you can trust UDM to withstand the hardships of life on the road. Lamp-related costs and maintenance, as well as image flicker, belong to the past thanks to the laser phosphor light source. Barco’s outstanding integrated laser cooling prevents overheating, and the Constant Light Output functionality guarantees constant brightness and color over the projector's lifetime.
Specifications
Projector type | WUXGA 3-chip DLP digital projector |
---|---|
Technology | 0.96" DMDTM x3 |
Resolution | 1,920 x 1,200 |
Brightness | 14,500 center lumens / 14,000 ansi lumens / 15,000 ISO lumens* |
Contrast ratio | 2200:1 |
Brightness uniformity | 95% |
Aspect ratio | 16:10 |
ScenergiX | Horizontal and vertical edge blending |
Lenses | 9 optional TLD+ lenses with throw ratios from 0.4:1 to 10.3:1 (Lens not included. See Accessories tab for optional lenses.) |
Optical lens shift | Vertical between -100% to +130%, depending on lens Horizontal up to ±40%, depending on lens Motorized zoom and focus (with lens memory on TLD lenses) Motorized lens shift (with position memory on all lenses) |
Color correction | P7 |
Light source | Laser phosphor |
Light source lifetime | > 20,000 hrs |
Optical dowser | Digital + mechanical internal |
Picture-by-picture | Two sources simultaneously |
Sealed DLP™ core | Standard |
Orientation | 360° |
DMX 512 | Standard |
WARP | Direct adjust OSD + toolset |
Image processing | Embedded warp & blend |
Processing | Pulse Electronics |
Keystone correction | Yes |
Integrated web server | Yes |
CLO (constant light output) | Standard |
3D | Active eye wear (optional), passive circular (optional); 2 flash up to 200 Hz |
Inputs | Single HDBaseT, HDMI2.0 (HDCP2.2, HDR10), DP 1.2 (HDCP1.3), Quad 3G/12G SDI/BarcoLink ULTRA |
Optional Inputs | Quad DP1.2, Fiber SFP |
Input resolutions | From NTSC up to 4K (4,096 x 2,160) Refresh rates: 24 Hz to 120 Hz 4K/4KUHD (4096 x 2160 / 3860 x 2400) to 240 Hz WQXGA (2560 x 1600) |
Max. pixel clock | 600 MHz |
Software tools | Projector Toolset + Android** app + iOS** app |
Control | XLR wired + IR, RS232, Wifi**, GSM** |
Network connection | 10/100 base-T, RJ-45 connection, Wifi** |
Power requirements | 120–160 V (reduced power), 18.5 A / 200–240 V (±10%), 13.5 A, 50–60 Hz |
Max. power consumption | 1330W nom/1550W max @ 230 volts ECO STBY 1330W nom/1550W max @ 120 volts ECO STBY |
Noise level (typical at 25°C/77°F) |
46 dB(A) **** |
Operational ambient temperature | 0–40°C / 32°–104°F *** |
Operational humidity | 0–80% (non condens) |
Dissipation BTU |
Max. 5,200 BTU/h |
Dimensions (WxLxH) | 725 x 540 x 339 mm / 28.54 x 21.26 x 13.35 inches |
Shipping Dimensions (WxLxH) |
850 x 665 x 613 mm / 33.46 x 26.18 x 24.13 inches (incl. pallet) |
Weight | 48 kg (105 lbs) / shipping weight from factory: 61 kg (134 lbs) |
Standard accessories | Power cord, wireless/XLR wired rugged remote control |
Certifications | Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55032 Class A, Rohs |
Warranty | 3 years |
Notes:
* Brightness levels ±10%
** Wifi and GSM options are not available in all countries. Check with your Barco representative for more info.
*** At higher altitude light output might be dimmed.
**** From Q1 2021 onwards
Accessories
Optional Lenses
(The UDM-W15-NL is not sold with a lens.)
TLD+ Lens Series
Part Number: | R9801661 | R9862000 | R9862001 | R9801414 | R9840775 | R9862005 | R9862010 | R9862020 | R9862030 | R9862040 | R9829997 |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
Add to Cart |
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
D:W WUXGA |
0.40:1 | 0.67:1 | 0.68–0.87:1 | 0.85–1.24:1 | 1.14:1 | 1.16–1.49:1 | 1.39–1.87:1 | 1.87–2.56:1 | 2.56–4.17:1 | 4.17–6:95:1 | 6.93–10.30:1 |
f/stop | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
